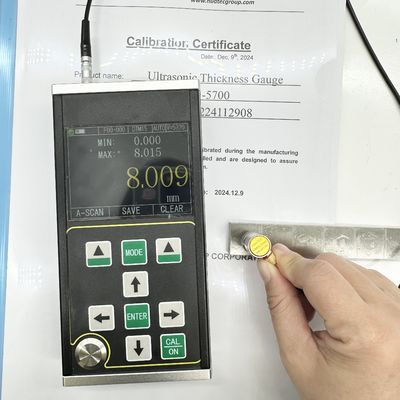

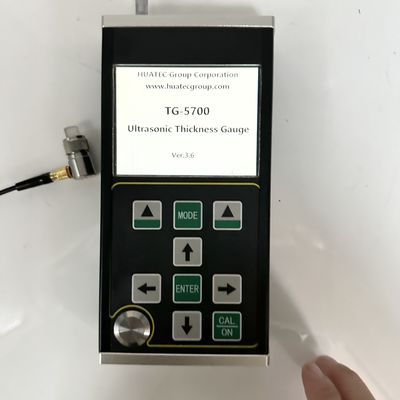

TG-5700 High-Precision Ultrasonic Thickness Gauge with 0.001mm Accuracy and A/B Scanning

The TG-5700 is a new generation handheld high-precision digital ultrasonic thickness gauge featuring A/B scanning capabilities. Utilizing the pulse reflection principle of ultrasonic thickness measurement, this instrument is designed for materials where ultrasonic waves propagate at constant speed and reflect from back surfaces. With a measurement resolution of 0.001mm and a range starting from 0.15mm (steel), it delivers exceptional precision for industrial applications.

This instrument accurately measures plates and processed components while monitoring corrosion-induced thinning in pipes and pressure vessels within production equipment. Applications span petroleum, chemical, metallurgy, shipbuilding, aerospace, and energy industries.

Compliant with Calibration Specification for ultrasonic thickness gauge (JJF 1126-2004).

• A-scan, B-scan, and numerical display modes
• Wide measurement range with unique "multiple echo" technology for ultra-thin parts (minimum 0.15mm steel)
• High precision measurement with resolution up to 0.001mm and repetition resolution of ±0.002mm
• Penetrating coating and echo-to-echo measurement for materials with paint layers and surface coatings
• Multiple measurement modes: MB-E, E-E, ME-E for conventional workpieces; THIN mode for thin parts
• Numerical modes: conventional thickness, difference/reduction rate, and maximum value
• Dual gain modes: automatic and manual gain control
• Manual and automatic shutdown settings with energy-saving function
• Supports various probes including double crystal and single crystal, up to 20MHz high-frequency
• Mass storage capacity: 100,000 thickness values, 500 A-scan waveforms, 500 B-scan waveforms
• 3.5-inch color TFT-LCD display with 320x240 QVGA resolution
• Multiple calibration methods: one-point, multi-point, and manual calibration
• Metric/imperial unit conversion (mm/inch)
• English language interface

Suitable for measuring thickness of metals (steel, cast iron, aluminum, copper), plastics, ceramics, glass, resin, fiberglass, and other ultrasonic conductors.

Ultrasonic thickness measurement operates similarly to light wave measurement. The ultrasonic pulse emitted by the probe reaches the measured object, propagates through the material, reflects from the material interface back to the probe. Material thickness is determined by precisely measuring ultrasonic propagation time through the material.

Note: The company reserves the right to make technical modifications without prior notice.

• Main unit TG-5700 - 1pc
• 2.5M Φ20 single element transducer (testing range 4-1800mm) - 1pc
• Couplant bottle - 1pc
• Carrying case - 1pc
• Instruction manual - 1pc
• Calibration certificate - 1pc

Various probes with different frequencies, single probe 8mm/10mm/12mm, TR ultrasonic thickness probes, step wedge blocks, and PC data software.

Standard export package, canton. Custom packaging options available upon request.
