HDL-380 Film dryer with 8 air flow channels 360mm sheet feeding width and PTC heating element

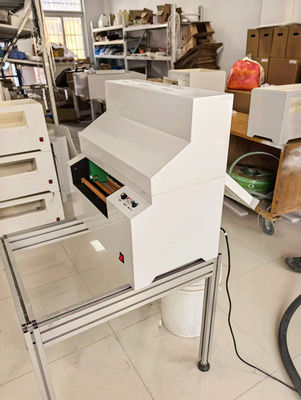

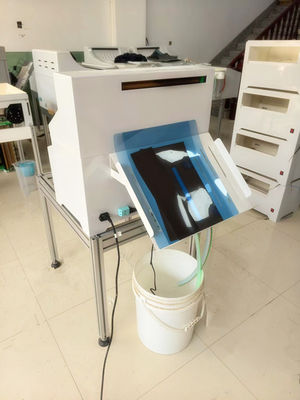

Gambar besar : HDL-380 Film dryer with 8 air flow channels 360mm sheet feeding width and PTC heating element

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	ISO, CE, GOST
Nomor model:	HDL-380

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah

Kontak

HDL-380 Film dryer with 8 air flow channels 360mm sheet feeding width and PTC heating element

Deskripsi

Metode rilis film:	Rilis film depan/belakang

HDL-380 Film Dryer with 8 Air Flow Channels

Product Overview

The HDL-380 Film Dryer features advanced 8-channel air flow technology for superior drying efficiency in film processing applications. Engineered for reliability and performance in industrial settings.

Technical Specifications

Parameter	Specification
Drying Process	→ → Water Washing → → Drying → →
Film Release Method	Front/Back Film Release
Film Development Speed	40-240s Adjustable
Sheet Feeding Width	360mm
Moving Speed	950mm/min (Running Time: 40 seconds)
Dry Tablet Quantity	80X360mm (4"X14") Film - 600 sheets per hour (Dry Film Speed 40s)
Power Supply	200-240V, 50/60Hz, 5A
Water Consumption	2 l/min during film operation
Dimensions	560mm × 480mm × 545mm (Length × Width × Height)

Key Features

Chip induction function for enhanced operation
8 air flow channels with improved air duct design for higher drying efficiency
Roller shaft constructed with DuPont foamed uranium for durability (guaranteed not to harden within 5 years)
Shell made from engineering PVC plastic
PTC heating element for reliable performance
Constant temperature control with solid-state relay

Optional Accessory: Water washing circulating device - ideal for sites without tap water, poor water quality, or frequent water stoppage conditions.
