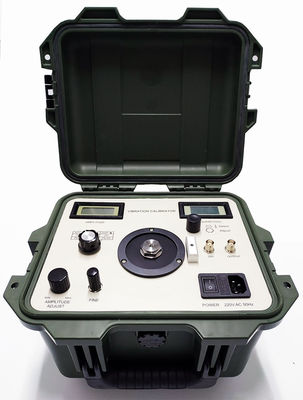

HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy
HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

Gambar besar :  HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO, CE, GOST
Nomor model: HG-5026
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kontak

HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

Deskripsi
Suhu: Operasi: 0oC hingga 50 oC Penyimpanan: -20 oC sampai 70 oC
Kekuatan: 220Vac (opsional 110Vac) Menguji: Probe 5mm,8mm dan 11mm
Ukuran Probe: Probe 5mm,8mm dan 11mm

HG-5026 Battery Powered Vibration Calibrator

The HG-5026 battery powered vibration calibrator is designed for calibrating vibration accelerometers, velocity and proximity transducers, and vibration measuring instruments. It generates standard sine signal vibration at frequencies from 1 to 1280 Hz, with amplitude of acceleration, velocity, and displacement defined through potentiometers and displayed on digital screens.

This versatile instrument can generate both horizontal and vertical vibration, combining sine signal generator, power amplifier, standard transducer, vibration meter, and shaker in one compact unit. Featuring small volume, high accuracy, and easy operation, it is suitable for both laboratory and field applications.

Maximum Vibration Amplitude & Transducer Weight
Performance Specifications by Transducer Weight
Frequency < 100g < 250g < 500g
a(m/S²) v(mm/S) d(μm) a(m/S²) v(mm/S) d(μm) a(m/S²) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *
Note: When the frequency is high, due to the very small value of the vibration displacement, the calibrator does not display the amplitude of the vibration signal at these points.
Battery System
  • Automatic charging when connected to AC power supply
  • Built-in battery overcharge protection
  • Approximately 8 hours charging time from empty to full
  • Over 8 hours of operation when fully charged (varies with vibration intensity)
  • Low power life protection, over-temperature protection, and short-circuit safety protection
Technical Specifications

Frequency Range: 1 to 1280 Hz ≤±0.01%

Amplitude Accuracy:

  • Acceleration (@10m/s² pk): 40Hz to 320Hz ±0.3dB ±1digit, 20Hz to 640Hz ±0.5dB ±1digit
  • Velocity (@20mm/sec rms): 40Hz to 320Hz ±0.5dB ±1digit
  • Displacement (@50μm pk-pk): 40Hz to 320Hz ±0.5dB ±1digit

Proximity Probe Linearity Calibration Kits:

  • Probes: 5mm, 8mm and 11mm probes
  • Range: 0~4.0mm

Weight of Velocity Probe: <650g

Display: 3½ digit display for vibration and frequency

Dimensions: 300 × 250 × 210 mm

Net Weight: 6 kg

Temperature Range:

  • Operation: 0°C to 50°C
  • Storage: -20°C to 70°C

Power Supply: 220Vac (optional 110Vac)
