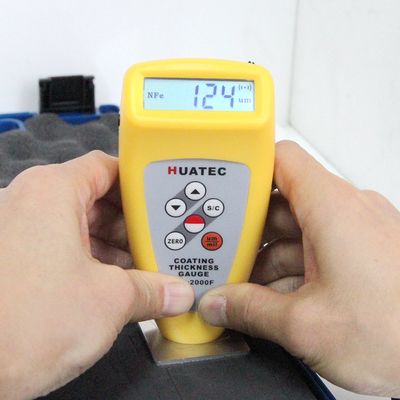

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester
TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Gambar besar :  TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-2000F
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Kemasan rincian: Kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, PayPal
Menyediakan kemampuan: 10 set/bulan
Kontak

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester

Deskripsi
Rentang Pengujian (um): 0-1250um Menggunakan lingkungan:: 0-+45℃(32℉-104℉),≤90%RH
Resolusi)(um): 0,1μm /1μm Akurasi Pengukuran: ±1-3%n atau ±2.5um
Min. Luas Pengukuran: 6mm Ketebalan sampel minimum: 0,3 mm
Menyoroti:

Eddy current coating thickness gauge

,

Anodizing paint thickness tester

,

Separate probe thickness gauge

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester


Application:

1.TG-2000F can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)


Technical Parameter

Operating principle eddy current
Measuring range 0-1250um
Resolution 0.1/1
Accuracy  ±1-3%n or ±2.5um
Min. measuring area 6mm
Min. sample thickness 0.3mm
Battery indicator

low battery indicator
Metric/ imperial convertible
Power supply 4x1.5V AAA(UM-4)battery Auto power off
Operating conditions 0-+45℃(32℉-104℉),≤90%RH
Dimensions&weight 126x65x27mm,81g(not including battery)

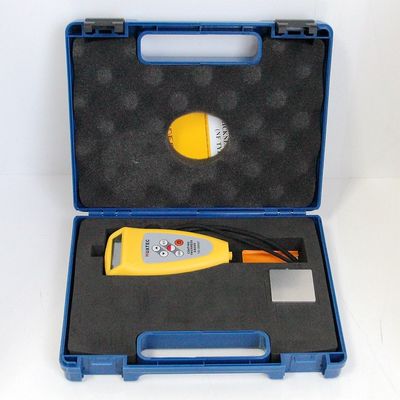

Standard Delivery

Main unit (1250um)                      1

F type probe                            1

F calibration base set                   1

Calibration foil set                         1set (4 foils)

Carrying case                               1

Instruction manual                        1

Optional Accessories

Cable and software for RS-232C

Customized testing range upto 3000 micron

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 0

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 1

TG-2000F 0-1250μm Eddy Current Coating Thickness Gauge Built-in & Separate Probe Anodizing Paint Thickness Tester 2
