HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester
HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester

Gambar besar :  HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HEF-CC100
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester

Deskripsi
saluran deteksi: 1-8 (scalable sesuai kebutuhan) Rentang Frekuensi: 5 Hz ~ 12 MHz, dapat disesuaikan secara terus-menerus, 2-4 frekuensi yang dapat dipilih secara indep
Dapatkan jangkauan: 0,0dB ~ 99,0dB dapat disesuaikan terus menerus, langkah: 0,1dB Rasio gain: （X/y） 0,1 ～ 10.0
Snr: ≥ 10dB (hingga 30dB) Faktor penyaringan: 0-30000
Faktor amplifikasi perangkat keras: 1db ～ 39.9db, terus disesuaikan, langkah: 1db
Menyoroti:

Digital eddy current flaw detector with touch screen

,

Intelligent flaw detector with DSP technology

,

Eddy current tester with auto report generation

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester
Key Features
  • Multi-channel detector with digital, intelligent, highly integrated features (1-8 channels optional)
  • Advanced computer technology with DSP digital processing and FPGA technology
  • Powerful data output capabilities and excellent scalability
  • Comprehensive software features including parameter saving, data storage, and report analysis
  • Supports flexible customization of various high-performance detection probes
  • Intuitive operation with 10.1 inch capacitive full touch color screen
  • Multi-language support with quick language switching
Technical Specifications
Attribute Value
Detection channels 1-8 (scalable as needed)
Frequency range 5 Hz ~ 12 MHz, continuously adjustable, 2-4 independent selectable frequency
Gain range 0.0dB ~ 99.0dB continuously adjustable, step: 0.1dB
Gain ratio (X/Y) 0.1～10.0
SNR ≥ 10dB (up to 30dB)
Filtering factor 0-30000
Hardware amplification factor 1dB ～ 39.9db, continuously adjustable, step: 1dB
Additional Specifications
  • Phase rotation: 0 ~ 360° continuously adjustable, step: 1°
  • Probe drive level: 1～16 adjustable
  • Maximum measurement range: 10 ~ 10000, step 1
  • Multiple excitation modes: DP/di; differential, absolute and various customized probes
  • Stability: 16 hours ≤ 2dB
  • Working temperature: 0℃～ +45℃, storage temperature: -20℃～ +50℃
  • Dimensions: 280 × 190 × 70mm (L × W × H), Weight: < 2.5kg
  • Battery life: Continuous operation for 6h (depending on environment)
Application Areas

Nuclear power, electric power, petroleum, chemical industry, metallurgy and other in-service testing, teaching in colleges and universities, various laboratories, special equipment and other industries.

Standard Configuration
  • Host: A multifunctional intelligent digital eddy current tester
  • Probe and accessories: Customizable according to user's material, specification and shape
  • Standard test block (optional or customized)
  • Operation manual: One copy
  • Warranty card: One copy
  • Product list: One copy

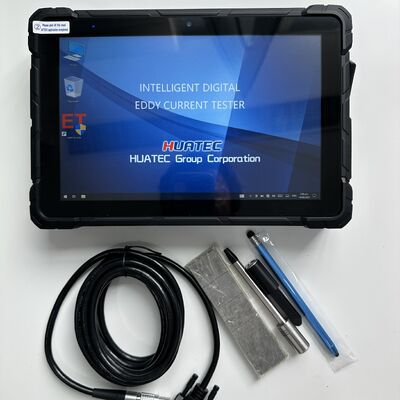

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester 0

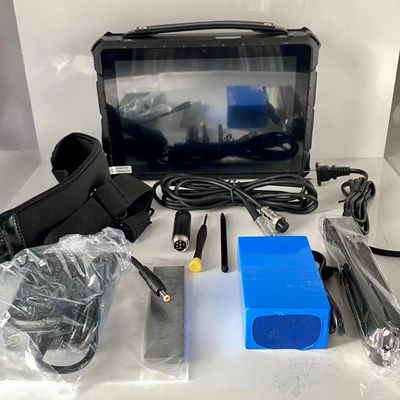

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester 1

HEF-CC100 Intelligent Digital Eddy Current Flaw Detector 10.1 Inch Capacitive Touch Screen DSP FPGA Technology Auto Report Generation Tester 2
