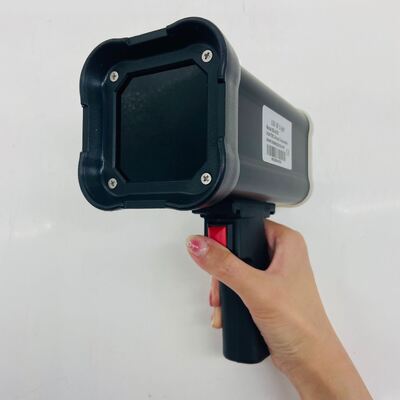

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Gambar besar : DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	DG-8K

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	Kotak kemasan karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Paypal
Menyediakan kemampuan:	10set/bulan

Kontak

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Deskripsi

UV (Cahaya) -FLUX Suhu dalam ruangan 25 ℃:	10000uW/cm²	Area iradiasi pada kedalaman 380mm: (≥1000uw/cm²):	Diameternya sekitar 200mm
kesalahan FLUX:	0-40℃ ±10%	Catu Daya:	AC100- 240V,50/60Hz
Panjang gelombang:	Suhu kamar 25℃, 365nm±3nm (UVA)	Kekuatan:	UV LED-9VA Cahaya-3VA
Karakteristik distribusi cahaya:	Distribusi cahaya terpusat
Menyoroti:	365nm UV LED inspection lamp , handheld UV black light , magnetic particle NDT lamp

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Features

*Energy saving is only 9VA of power consumption.

*The average lifespan of a light source of 30000H.

*Original imported light source UVLED.

*The UV-B content is 0.

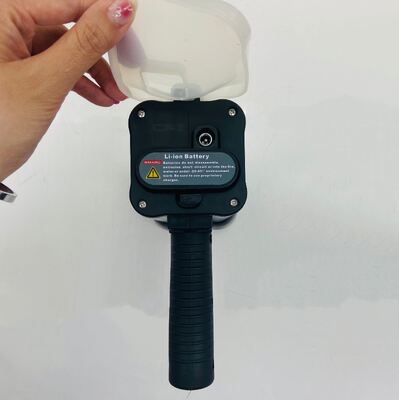

*3-4 hours of battery life.

*Quick battery replacement

*Weight containing less than 500g of batteries.

*There is no external wiring.

*Quartz and optical glass module, non PMMA material, excellent weather resistance.

*Continuous working with an external surface temperature rise of less than 5K (5 ℃).

*No preheating required, instantly reaching 100% power.

*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp

Project	Parameter / method
Form	Handheld
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm	UV -FLUX 10000uW/cm² Light-MAX1500LUX
Coverage area calibration at 380mm	Approximately 200mm in diameter
FLUX error	0-40℃ ±10％
Light distribution characteristics	Center light distribution
power supply	AC100-240V 50/60Hz
power	UV LED-9VA Light-3VA
wavelength	Room temperature 25℃ 365nm±3nm(UVA)
Dimensions	137mm(W)73mm(D)175mm(H)
weight	498g
battery capacity	2200mA/H 12.6V
Charging time	3-4H
Battery life (cumulative time)	UV LED 3-4H or Light 7H

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light 0
