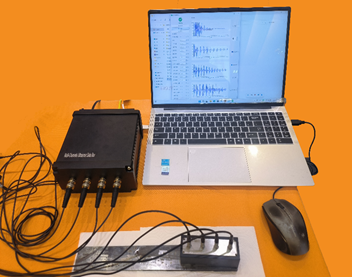

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin
HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

Gambar besar :  HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO, CE, GOST
Nomor model: HFD-2000
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kontak

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

Deskripsi
rentang keuntungan: 0 hingga 120dB

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board
The HFD-2000 ultrasonic automatic detection board enables rapid, non-destructive, and precise monitoring, localization, evaluation, and diagnosis of workpiece damage. This essential system in the non-destructive testing industry supports automatic inspection, C-scan, online flaw detection, thickness measurement, and 24/7 ultrasonic signal monitoring.
Applications
Widely utilized across multiple industries including electric power, petrochemical, boiler pressure vessels, steel structures, aerospace, railway transportation, automotive, and machinery manufacturing.
Technical Specifications
Parameter Specification
Detection Range 0 to 15m
Gain Range 0 to 120dB
Sensitivity Margin >65dB
Dynamic Range 38dB
Resolution 42dB (5P14)
Speed of Sound 100 to 20000m/s
Frequency Range 0.2 to 30MHz
Display Accuracy 0.001mm
Repeated Firing Frequency 16 to 25Khz
Vertical Linear Error <2%
Key Features
  • 24/7 monitoring with automatic detection, gain, measurement, capture, alarm, storage, and report generation
  • Gigabit Ethernet transmission of waveform data, gate height data, alarm data, and test results
  • Real-time upload of all 20K detection results
  • Scalable channel configuration: single board channel, 4 channels, 8 channels, or multi-board systems supporting hundreds of channels
  • Multiple communication options: Gigabit Ethernet, 485/232, Bluetooth
  • IP67 rated dustproof and waterproof construction with optional long-term underwater detection capability

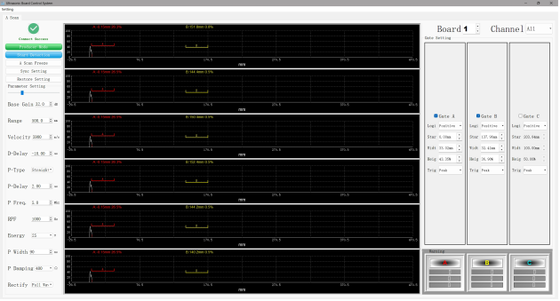

  • Standard PC software for real-time display of all channel waveforms and test results
  • Four optional gates
  • Battery or plug-in operation for continuous all-weather functionality
  • Comprehensive software with multi-channel A-scan waveform, strip chart, C-scan functions, and defect capture capabilities
  • Software development support with communication protocols and basic functions for customization
This versatile detection system provides comprehensive non-destructive testing solutions with advanced automation, scalability, and robust environmental protection for demanding industrial applications.
