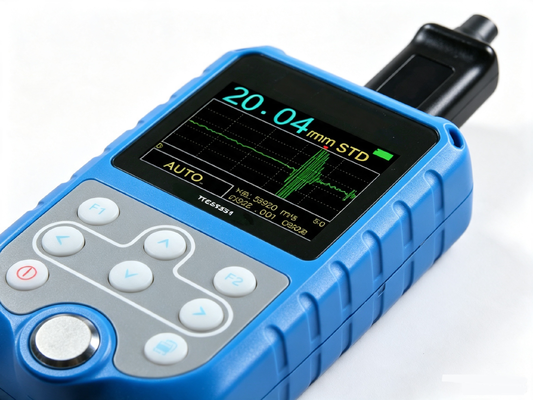

TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester

TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester
TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester

Gambar besar :  TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-3251
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester

Deskripsi
Rentang Pengukuran: TE: 0,65mm～400,0mm EE: 3,00mm～25,00mm Resolusi: 0,01mm (0,001 inci)
rentang kecepatan: 1000m/dtk～9999m/dtk Ingatan: 10.000 bacaan dalam 100 file
Satuan Pengukuran: Mm / inci Tingkat Pengukuran: 2 /dtk dan 10/dtk dalam mode cepat
Menyoroti:

Ultrasonic thickness gauge thru-coating

,

Metal wall thickness tester 0.01mm

,

A&B scan echo thickness gauge

TG-3251 A&B Scan Echo to Echo Ultrasonic Thickness Gauge 0.01mm Resolution Thru-Coating Metal Wall Thickness Tester


Features

● A&B Scan and big digits display

● Color TFT display 320×240

● Resolution 0.01 mm, measuring range T-E 0.65mm-400mm depending on different probes and E-E 3-25mm (Thru-coating)

● 5MHz Dual Element probe D5301 is standard delivery, optional 2MHz probe D2012, 5MHz probe D5008, 5MHz high temperature probe D5113, 7.5MHz probe D7006 and 10MHz probe D7004

● Cooperate with probe D1025 for Fiberglass and composite materials

● Automatic probe recognition and Automatic zero calibration

● Automatic measurement and manual-measurement selectable

● Automatically locates the detection point

● Measurement screen is automatic frozen, which make it easy to analyze the

  data for the user

● Memory of 100 files X 100 data, transfer data to PC without software,

  available for any windows operating systems

● English, Japanese menu language option


Technical Specification:

Measurement range

T-E: 0.65mm～400.0mm



E-E: 3.00mm～25.00mm

Resolution

0.01mm (0.001inch)

Accuracy

±0.04mm (when thickness gauge ＜9.99mm)



±(0.1% thickness +0.04)mm when thickness=10-99.9mm



±0.3% thickness mm when thickness＞100mm

Probe mode

D5301, Dual Element, 5MHz

Velocity range

1000m/s～9999m/s

Measurement rate

2 /s and 10/s in fast mode

Average mode

2 to 9 times average measurement

Measuring units

mm / inch

Limit setting

With Low-high indication and alarm

Memory

10,000 readings in 100 files

Data output

USB to PC without software

Display

TFT Color LCD320×240

Battery

2 x AA Batteries

Operating temperature

-20℃～+50℃

Dimensions

133mm(L)×75mm(W)×29mm(H)

Weight

0.26kg (including batteries)




Standard Delivery

●Main Unit

● Dual elementprobe (D5301 or D1025)

● 75ML Couplant

●Build-in calibration block (Thickness=4mm, Velocity = 5920m/s)

● USB Cable

●Carrying case

●Operating manual

● Calibration Certificate
