HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester

HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester
HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester

Gambar besar :  HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HR-150D
Dokumen: HR-150DT Digital Touch Scre...er.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester

Deskripsi
Skala Konversi: Superficial Rockwell, Brinell, Vickers Waktu tinggal: 2-60 tahun
Total beban Rockwell: 60kgf(588N) 100kgf(980N) 150kgf(1471N) Keakuratan pengukuran kekerasan: 0,1 jam
Tinggi Sampel Maksimal: 220mm Jarak Indenter ke dinding luar: 160mm
Keluaran Data: Di dalam Printer, RS-232 Indikasi Nilai Kekerasan: Tampilan layar LCD besar
Menyoroti:

Rockwell hardness tester with built-in printer

,

Multifunctional metal hardness tester RS232 output

,

High accuracy industrial hardness tester

HR-150D DMultifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester

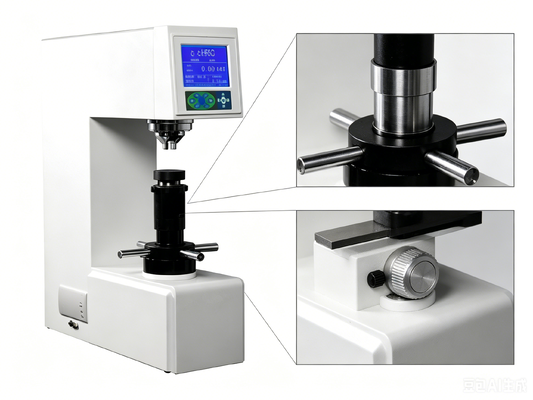

HR-150D Digital Rockwell hardness tester is equipped big screen LCD monitor. Operation panel use the menu type structure, the main functions are: Rockwell hardness of the scale choice, the choice of plastic Rockwell ruler, various guide the conversion between hardness, hardness testing results automatically save and RS-232 super terminal Settings, hardness value error can be modified HRough software input, hardness value more accurately meet test requirement.

Technical Specifications:

Model

HR-150D

Conversion Scale

Superficial Rockwell, Brinell, Vickers

Indication of Hardness Value

Large LCD screen display

Data output

Inside Printer, RS-232

Duration time

2-60s

Carried Standard

GB/T230.2 Chinese Standard, JJG112 Inspection Rule

Preliminary Testing force

10kgf(98.07N)

Testing force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell Scale

HRA, HRB, HRC, HRD, HR E, HRF, HRG, HRH, HRK

Hardness measuring range

HRA:20-88   HRB:20-100  HRC:20-70  HRD:40-77

HRF:60-100  HRG:30-94  HRH:80-100  HRK:40-100

Max Height of Specimen

220mm

Distance of Indenter to outer wall

160mm

Power supply

AC220V+5%,50-60Hz

Overall Dimension (mm)

520*240*720

Net weight

About 65Kg


Application Fields:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Standard Accessories:

Name

Quantity

Name

Quantity

Diamond Rockwell Indenter

1

1.5875mm Ball Indenter

1

Hardness block

(HRC High Low 2, HRB 1)

3

Large, Medium, “V” shaped Testing Table

1 each

Weights(A,B,C)

   1 each

Plastic Dustproof cover

1

Operation Manual

1

Product certificate

1



Optional Accessories:

Data processing software CD        1pc

USB cable                       1pc



HR-150D Multifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester 0
