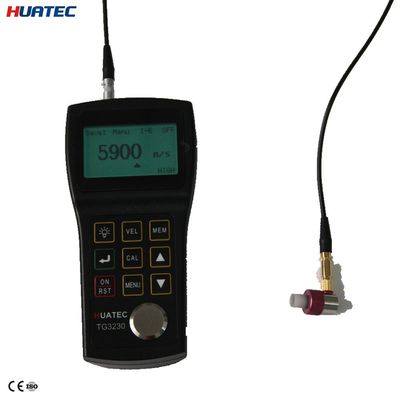

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument
TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument

Gambar besar :  TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-3230
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Kemasan rincian: Kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, PayPal
Menyediakan kemampuan: 10 set/bulan
Kontak

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument

Deskripsi
Menampilkan: Ukuran LCD 42×57mm dengan lampu latar EI dan kontras yang dapat disesuaikan, ukuran font hingga 13,7 Kecepatan Suara: 1000 hingga 9999 m/dtk (0,0394 – 0,3936 inci/mdtk)
Resolusi: mm : 0,1 / 0,01 / 0,001 inci : 0,01 / 0,001 / 0,0001 Ketepatan: ±0,005mm atau 0,0002 inci (jika ketebalan < 3mm) ±0,05mm atau 0,002 inci (jika ketebalan < 20m
Kapasitas memori: 5 array dibagi untuk menyimpan 500 nilai ketebalan Mengukur Frekuensi Refresh: 4Hz dalam mode normal, hingga 25Hz
Menyoroti:

Portable ultrasonic wall thickness meter

,

Industrial thickness measuring instrument

,

Ultrasonic thickness meter with alarm

TG-3230 Portable Ultrasonic Wall Thickness Meter 0.15mm Minimum Measurement High Low Limit Alarm Industrial Thickness Measuring Instrument


FEATURES

  • HIGH ACCURACY AND RESOLUTION UP TO 0.001mm or 0.0001 inch
  • MEASURING ULTRA THIN SAMPLE AS LOW AS 0.15mm or 0.006 inch
  • DISPLAY UNITS : IMPERIAL and METRIC
  • AUTOMATIC SELF CALIBRATION
  • COUPLANT INDICATOR
  • AUTOMATIC POWER OFF DEVICE
  • HIGH-LOW LIMIT ALARM
  • LCD BRIGHTNESS ADJUST
  • LOW BATTERY INDICTOR

TECHNICAL SPECIFICATIONS

Measuring Range (for steel)

Interface-Echo Mode:

(I-E or Standard Mode)

1.50mm – 20.0mm

(0.059in – 0.787 in)

Echo-Echo Mode:

(E-E or High Precision Mode)

0.3mm – 10.0mm

(0.012in – 0.394in)

Measuring Accuracy

±0.005mm or 0.0002 inch (if thickness < 3mm)

±0.05mm or 0.002 inch (if thickness < 20mm)

Display Resolution

mm : 0.1 / 0.01 / 0.001

inch : 0.01 / 0.001 / 0.0001

Sound Velocity Range

1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)

Measuring Refresh Frequency

4Hz in normal mode, up to 25Hz

Memory Capacity

5 arrays are divided to store 500 thickness values

Multiple Calibrations

One point or Two Point

Display LCD

42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Power Source

2 pcs. 1.5v AA size batteries

Communication Port

USB port or Serial RS 232 port (Optional)

Continuous working period

About 200 hours (with backlight off)

Power off

Auto power off if idle for 4 minutes

Operating Temperature

-10 °C to +50 °C

Unit Size

2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Weight

200g

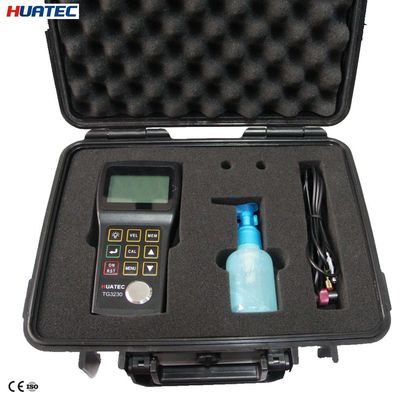

STANDARD DELIVERY

  1. Main unit with Calibration block (4.00 mm)
  2. Precision Probe (D11R) with Replaceable Delay Tip
  3. Coupling Paste
  4. Operation Manual
  5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
  6. Carrying Case

OPTIONAL ACCESSORIES

1.    Single element probe

2.    Probe cable

3.    Wedge

4.    Rubber sheath

5.    Communication Option

6.    Calibration step block
