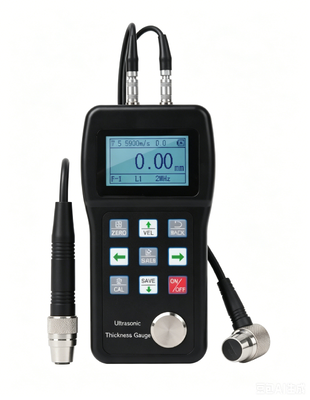

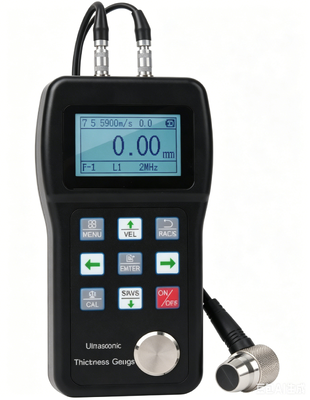

TG-3200L 0.01mm Resolution Ultrasonic Thickness Tester LCD Backlight USB Data Output Pressure Vessel Corrosion Thickness Measuring Instrument
Introduction:
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
The choice to probes:
|
Name
|
Model
|
Frequency
|
Diameter
|
Testing Range
|
Min. area f
|
Application
|
|
Large diameter probe
|
N02
|
2.5
|
14mm
|
3.0mm～600.0mm(steel)
Below 40mm(Gray Iron HT200)
|
20mm
|
casting work piece
|
|
Large range probe
|
N02
|
2
|
14mm
|
3.0mm～600.0mm(steel)
Below 100mm(Gray Iron HT200)
|
20mm
|
casting work piece
|
|
Standard probe
|
N05/90°
|
5
|
10mm
|
1.0mm～600.0mm(steel)
|
Φ20mm*3.0mm
|
General bent probe
|
|
Micro-diameter probe
|
N07
|
7
|
6mm
|
0.75mm～80.0mm(steel)
|
Φ15mm*2.0mm
|
thin work piece
|
|
High Temperature Probe
|
HT5
|
5
|
14mm
|
3～200mm (steel)
|
30mm
|
high temperature
|
Working Conditions:
Working Temperature:－20℃~＋50℃
Storage Temperature:-30℃~＋70℃
Working Humidity:≤90％；
On surrounding, need to no strong vibration, strong magnetic field, corrosive medium or severe dust.
Technical Specification:
l Display:128*64 LCD with LED backlight;
l Through coating measurement for gauging thickness of a painted object without removing the nonmental coating
l Measuring Range:standard probe:0.75-600.00mm, Measuring Range:(Through Coating):3-25mm
l Velocity Range:(1000~9999) m/s;
l Resolution:0.01mm
l Measuring accuracy:: ±(0.5%H+0.04mm);H is thickness value;
l Measurement cycle:Single point measurement 6 times/per；
l Storage:40 values of saved data
l USB port
l Power Source:2pcs 1.5V AA size
l Working Time:more than 50 hours (LED backlight off).
l Outline Dimensions:145mm*74mm*32 mm
l Weight:245g
Main Functions:
l Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
l Can collocate variety different frequencies, various sizes of probes；
l Sound Velocity Calibration function as a known thickness;
l Coupling status indicator showing the coupling status;
l EL backlight, and convenience to use under dark environment；
l Have the battery indicator function, can real-time display the remaining power
l Auto sleep and auto power off function to conserve battery life；
l Smart, portable, high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
Instrument Configuration:
|
|
No.
|
Name
|
QTY
|
Notes
|
|
Standard Configuration
|
1
|
Main Body
|
1 set
|
|
|
2
|
Standard Probe(5MHz,D10mm)
|
1 pc
|
|
|
3
|
Couplant
|
1 pc
|
|
|
4
|
ABS Case
|
1 pc
|
|
|
5
|
Product Certificate
|
1 pc
|
|
|
6
|
Warranty Card
|
1 pc
|
|
|
7
|
Manual
|
1 pc
|
|
|
8
|
1.5V AA size
|
2 pcs
|
|
|
Optional
Accessories
|
9
|
Large diameter probe(2.5MHz)
|
|
|
|
10
|
Large range probe(2MHz)
|
|
|
|
11
|
Micro-diameter probe(7MHz)
|
|
|
|
12
|
High temperature probe(5MHz)
|
|
|
|
13
|
High temperature couplant
|
|
|
