Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Gambar besar : Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Nomor model:	HMTD

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah

Kontak

Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Deskripsi

Metode Deteksi:

Kebocoran Fluks Magnetik (MFL)

Menyoroti:

mobile drill pipe MFL detector

compact magnetic flux leakage equipment

fast detection speed NDT tool

Mobile Drill Pipe Magnetic Flux Leakage Detection System - HMTD

System Overview

The HMTD mobile drill pipe magnetic flux leakage detection system provides advanced non-destructive testing capabilities for drill pipe inspection. This innovative equipment addresses critical safety concerns in drilling operations by identifying defects that could lead to catastrophic failures.

Compact Design
Lightweight and easily transportable for field use

Minimal Blind Areas
Advanced detection with reduced inspection gaps

Rapid Deployment
Quick setup and standardized inspection process

Versatile Application
Suitable for both factory and field environments

Detection Principle

The system utilizes Magnetic Flux Leakage (MFL) technology, recognized as the most reliable method for inspecting ferromagnetic tubular materials. This approach offers superior detection speed, effectiveness, and operational simplicity.

Working Principle: When ferromagnetic materials like drill pipes are magnetized, magnetic flux distributes evenly through defect-free sections. However, at defect locations (cracks, holes, wear), the magnetic permeability changes significantly, causing magnetic flux to leak from the surface. Sensitive magnetic components detect these field distortions to identify and characterize defects.

System Components

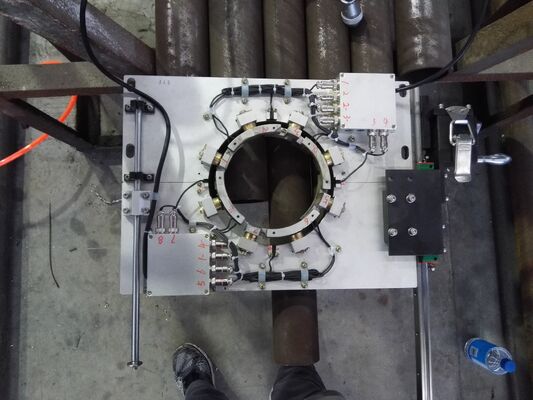

Mobile Detection Probe

Magnetizer: Generates parallel magnetic fields for pipe magnetization
Crawling Device: DC reduction motors with rollers for automated movement
Flaw Detection Sensor: Customizable probe groups for different pipe diameters
Signal Preprocessor: Amplifies and filters detection signals

Mobile Console & Computer System

The mobile console integrates electrical control systems, excitation power supply, motor drive power, and voltage stabilization components. The computer signal processing system analyzes detection data and generates comprehensive test reports.

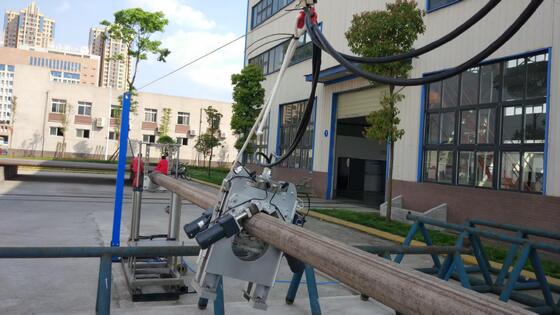

Inspection Process

Step 1: Position drill pipe in inspection area and deploy inspection trolley

Step 2: Hydraulic lifting mechanism raises drill pipe for probe scanning

Step 3: Automated probe crawling completes full surface inspection

Step 4: Lower drill pipe and retract probe to trolley platform

Step 5: Remove inspected pipe and prepare for next inspection

Key Benefits

Eliminates large detection blind areas common in conventional equipment
Compact size eliminates need for specialized workshop facilities
Combines speed of fixed equipment with mobility of portable systems
Reduces labor intensity through automated inspection process
Cost-effective solution for comprehensive drill pipe quality monitoring
