High Reliability Non Destructive Testing Handheld X-ray Fluorescence Spectrometer for Preventive Maintenance HXRF-145AT

Gambar besar : High Reliability Non Destructive Testing Handheld X-ray Fluorescence Spectrometer for Preventive Maintenance HXRF-145AT

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Nomor model:	HXRF-145AT

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah

Kontak

High Reliability Non Destructive Testing Handheld X-ray Fluorescence Spectrometer for Preventive Maintenance HXRF-145AT

Deskripsi

Suhu Operasional:

-10 ° C ~ 50 ° C.

Menyoroti:

handheld XRF spectrometer for preventive maintenance

non destructive testing XRF analyzer

HXRF-145AT X-ray fluorescence spectrometer

High Reliability Non Destructive Testing Equipment HXRF-145AT

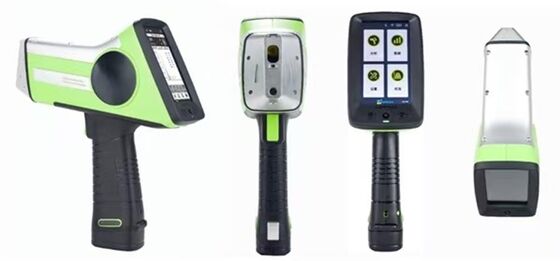

Handheld X-ray Fluorescence Spectrometer providing consistent results for preventive maintenance and control applications.

Technical Specifications

Usage Environment	Temperature: -10°C to 50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m
Size and Weight	Size: 275mm × 245mm × 82mm; Weight (including battery): 1.5Kg
Analysis Object	Solid, powder, liquid
Analysis Element Range	From Mg to U, Detection content range: 0.1ppm to 99.9% (varies by object type)
Detector	Peltier effect cooled Fast-SDD detector, Resolution ≤126eV
X-ray Source	Ag targets, tube voltage: 6-50kV, tube current: 0-200μA
Microcomputer System	Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage (approx. 400,000 spectral data); Built-in 4.5 inch high-definition backlight touch color display
Operating System	Industrial grade Linux
USB Interface	Two USB ports for U disk and PC connection
Wireless Interface	Built-in WiFi and Bluetooth for NET, PC, Android phone, or Bluetooth printer connectivity
Remote Control	Equipped with WinGUI software and Android APP for computer/phone data synchronization and sharing
Sample Camera	Microcamera for sample photography
Collimation, Filtering & Calibration	2.6mm collimator, 8-channel filter, built-in calibration plate with program controlled automatic calibration
Pressure Compensation	Built-in barometer with automatic pressure compensation correction
Analysis Software	NDT element analysis software with multiple analysis modes, built-in alloy grade library (500+ types), customizable reporting
Operating Language	English, customizable for multiple languages
Radiation Safety	Password protection, sample recognition sensor, multi-angle X-ray status warning, work interface radiation <0.15 μSv/h
Battery	6600mAh lithium battery with 8-hour runtime, hot swapping capability, synchronized battery level display
Transportation Safety	Complies with ISTA 3A packaging standards and UN38.3
Environmental Adaptability	Complies with GB/T2423.1, GB/T2423.2, IP54, CE standards

Main Application Areas

Manufacturing Industry

Composition analysis of alloy materials
Reliability Identification of Alloy Materials (PMI)
Analysis of precious metals (gold, silver, platinum, palladium, rhodium, iridium)
Measurement of Metal Coating Thickness
RoHS compliance testing

Mining

Exploration of mineral veins
Analysis of ore grade
Analysis of Rare Earth Composition
Soil heavy metal detection

Recycling of Renewable Resources

Catalyst precious metal detection
Rapid classification of metals
Valuation of Renewable Resource Trading

Environment Protection

Soil heavy metal detection
Bottom sediment and sediment detection
Heavy metal detection in water
