HUATEC Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² for NDT Testing

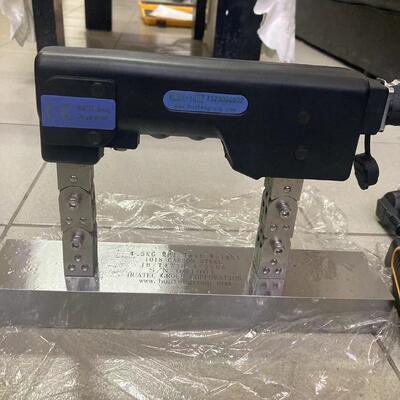

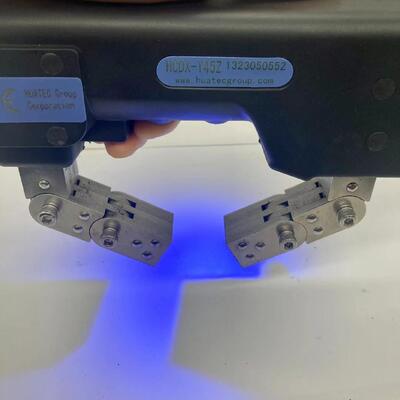

Gambar besar : HUATEC Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² for NDT Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Nomor model:	HCDX-Y45

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah

Kontak

HUATEC Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² for NDT Testing

Deskripsi

intensitas lampu uv:

≥5000uw/cm²

Menyoroti:

Portable AC&DC magnetic yoke flaw detector

Magnetic yoke detector with UV lamp

NDT testing equipment with warranty

HUATEC Portable AC&DC Magnetic Yoke Flaw Detector HCDX-Y45 Series

The HCDX-Y45 series portable magnetic yoke flaw detectors offer versatile non-destructive testing capabilities with multiple lighting modes and power options for comprehensive magnetic particle detection.

Available Models

HCDX-Y45: Portable AC Magnetic Yoke Flaw Detector with White Light
HCDX-Y45DC: Portable AC & DC Fluorescent Magnetic Yoke Flaw Detector with White Light and UV Light
HCDX-Y45Z: Portable AC Fluorescent Magnetic Yoke Flaw Detector with White Light and UV Light

Product Features

Dual lighting modes: ultraviolet lamp and white lamp
Lightweight probe design at only 2.0kg for extended magnetic particle detection work
AC and DC operation modes (HCDX-Y45DC model)
AC operation: Connect to AC220V power supply for flaw detection
DC operation: Battery-powered operation capability

Technical Parameters

Parameter	Specification
Sensitivity	A1 15/100 standard test piece; Clear display of defect
Power Supply	HCDX-Y45: AC220V HCDX-Y45DC: AC220V and DC12V HCDX-Y45Z: AC220V
Probe Pole Distance	40mm-200mm
Lifting Force	AC ≥45N, DC ≥177N
White Lamp Illumination	≥1450Lux (AC connection only)
UV Lamp Intensity	≥5000uw/cm² (HCDX-Y45DC and HCDX-Y45Z models)
Machine Dimensions	210mm (length) × 48mm (width) × 150mm (height)
Yoke Weight	2.0 kg

Standard Configuration

HCDX-Y45 Configuration

Host with type D yoke probe (1 unit)
White lamp (1 pc)
AC power cable (1 pc)
Instruction manual (1 pc)
Calibration certificate (1 pc)
Instrument case (1 pc)

HCDX-Y45DC Configuration

Host with type D yoke probe (1 unit)
White lamp (1 pc)
UV lamp (1 pc)
AC power cable (1 pc)
Power adapter (1 pc)
Lead acid battery (1 pc)
DC power cable (1 pc)
Battery pack (1 pc)
Instruction manual (1 pc)
Calibration certificate (1 pc)
Instrument case (1 pc)

HCDX-Y45Z Configuration

Host with type D yoke probe (1 unit)
White lamp (1 pc)
UV lamp (1 pc)
AC power cable (1 pc)
Instruction manual (1 pc)
Calibration certificate (1 pc)
Instrument case (1 pc)
