Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² and White Lamp Intensity ≥1450Lux

Gambar besar : Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² and White Lamp Intensity ≥1450Lux

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Nomor model:	HCDX-Y45

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah

Kontak

Portable AC&DC Magnetic Yoke Flaw Detector with UV Lamp Intensity ≥5000uw/cm² and White Lamp Intensity ≥1450Lux

Deskripsi

intensitas lampu uv:

≥5000uw/cm²

Intensitas lampu putih::

≥1450Lux

Menyoroti:

Portable magnetic yoke flaw detector

AC&DC flaw detector with UV lamp

Magnetic yoke tester with white lamp

Portable AC&DC Magnetic Yoke Flaw Detector HCDX-Y45 series

Uv lamp intensity: ≥5000uw/cm²

White lamp intensity: ≥1450Lux

Product Models

HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light
HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light
HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light

HCDX-Y45 AC220V

HCDX-Y45DC AC220V and DC12V

HCDX-Y45Z AC220V

Probe pole distance 40mm-200mm

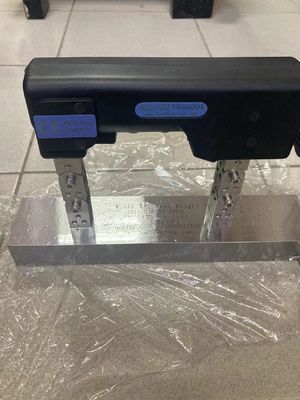

1. Product introduction

The probe can choose two lighting modes: ultraviolet lamp and white lamp.
The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.
Working mode: AC and DC (for model HCDX-Y45DC)
AC operation: The probe is connected to AC220V power supply for flaw detection.
DC operation: The probe can be connected to the battery for DC operation.

2. Technical parameters

Sensitivity: A1 15/100 standard test piece; Clear display of defect
Power supply:
- HCDX-Y45: AC220V
- HCDX-Y45DC: AC220V and DC12V
- HCDX-Y45Z: AC220V
Probe pole distance: 40mm-200mm
Lifting force: AC≥45N DC≥177N
Illumination of white lamp: ≥1450Lux (only when connected to AC)
UV lamp intensity: ≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)
Machine size: 210mm (length) *48mm (width) *150mm (height)
Yoke weight: 2.0 kg

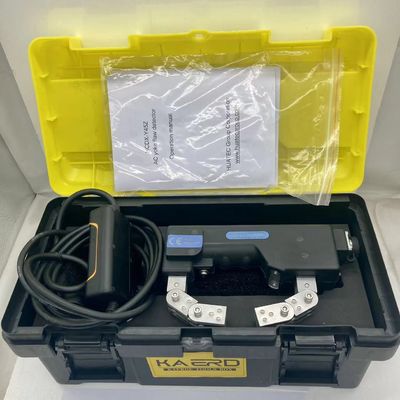

3. Configuration

HCDX-Y45 configuration

Host with type D yoke probe 1 unit
White lamp 1 pc
AC power cable 1 pc
Instruction manual 1 pc
Calibration certificate 1 pc
Instrument case 1 pc

HCDX-Y45DC configuration

Host with type D yoke probe 1 unit
White lamp 1 pc
UV lamp 1 pc
AC power cable 1 pc
Power adapter 1 pc
Lead acid battery 1 pc
DC power cable 1 pc
Battery pack 1pc
Instruction manual 1 pc
Calibration certificate 1 pc
Instrument case 1 pc

HCDX-Y45Z configuration

Host with type D yoke probe 1 unit
White lamp 1 pc
UV lamp 1 pc
AC power cable 1 pc
Instruction manual 1 pc
Calibration certificate 1 pc
Instrument case 1 pc
