UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Gambar besar : UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Nomor model:	UV-5070A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 SET
Harga:	USD690-USD780/SET
Kemasan rincian:	Kemasan karton luar
Waktu pengiriman:	5-7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	10 set/bulan

Kontak

UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Deskripsi

Kalibrasi area iradiasi efektif pada 380mm:	420*500mm	Penerangan cahaya putih:	＞1200LUX
UV-FLUX Suhu ruangan 25 ℃:	1000-6000uW/cm²	Panjang gelombang:	Suhu kamar 25 ℃ 365nm-370nm (UVA)
kesalahan FLUX:	0-40℃ ±10％	Kekuatan:	LED UV-72VA 24P*3VA
Menyoroti:	hanging type UV-A lamp , UV irradiation white light lamp , magnetic particle testing UV lamp

UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Features:

Complies with MFS0744/ASTM E3022 standards.

The average lifespan of a 30000H light source.

UV-A center irradiance>1000-6000uW/cm ²

The UV-B/UV-C content is 0.

Compact in size, easy to install.

Continuous working with a surface temperature rise of less than 8K (8 ℃).

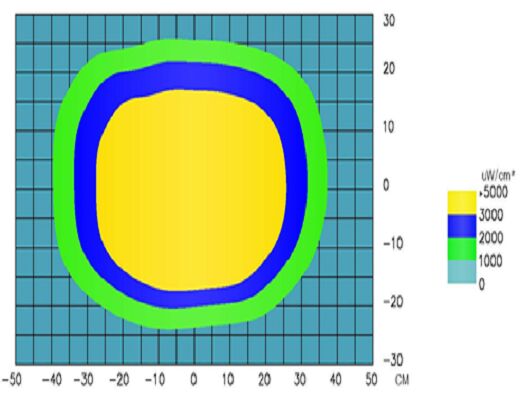

UV irradiation distribution map

No preheating required, instantly reaching 100% power.

Item	Parameters/Methods
formalize	Hanging
UV-FLUX Room temperature 25 ℃	Calibration center irradiance at 380mm is greater than 1000-6000uW/cm ²
Effective irradiation area Calibration at 380mm	420*500mm
White light illumination	＞1200LUX
Wavelength	Room temperature 25 ℃ 365nm-370nm (UVA)
White light content	＜10LUX
UV-B/UV-C	No
FLUX error	0-40℃ ±10％
Light distribution characteristics	Central lighting distribution
Power supply	AC100-240V 50/60Hz
Power	UV LED-72VA 24P*3VA
Overall dimensions	574mm(W)82mm(D)224mm(H)
Weight	3.6Kg
