Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector

Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector
Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector

Gambar besar :  Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: FD530mini
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Dalam karton
Waktu pengiriman: 5 ~ 8 hari setelah pembayaran Anda
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50 set per bulan

Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector

Deskripsi
Nama Produk: Detektor Kecacatan Ultrasonik Rentang pemindaian (mm): Rentang pemindaian (mm)
Mode kerja: Probe tunggal, probe ganda, transmisi Hemat Data: 500 gambar A-Scan
Menyoroti:

ultrasonic flaw detector for metal defects

,

composite material flaw detector

,

pinhole crack detection ultrasonic device

Defects as Crack Pinhole and Inclusion In such Metal Non Metal and Composite Ultrasonic Flaw Detector



FD530mini is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work-piece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.



When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.



Technical Parameters

Item Technical Data
Range of scanning (mm) Range of scanning (mm):0~1000
D-delay (ms) D-delay (ms):0~5000
MTLVEL(m/s) MTLVEL:1000~9999
Working mode Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz) 0.5~10
Gain adjustment (dB) 0~110
Reject 0%~80% of screen height
Vertical linear error Vertical linear error is not more than 3%
Horizontal linear error Not more than 0.1% in the scanning range
Sensitivity Leavings ≥50 dB
Dynamic range ≥36dB
Alarm Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area

Full screen or local

A-Scan display freezing and de-freezing A-Scan filling

Data save 500 A-Scan images (including setting of instrument)
Standard communication interface with PC USB
Measuring unit mm/inch
Battery Li battery 3.6V 3000mAh * 4
Power adaptor 4.2V DC 220AC
Working temperature -20℃~50℃
Working humidity 20%~90%
Port type LEMO
Overall dimension (mm) 162×105×42
Weight (kg) 0.68 (include Li-ion battery)



Performance Features

  • The dual CPUs work in coordination, high speed detecting and data processing;
  • Automatic calibration;
  • Easy tests of thickness and sound velocity of materials;
  • Freely set standards for various industries to meet different flaw detection
  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф);
  • Freely set standards for various industries to meet different flaw detection
  • The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity
  • DAG and AVG(DGS) curves are generated automatically;
  • Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search;
  • Li -battery, continue working time up to 10 hours;
  • Storage: 500 sets of flaw detection process and data storage;
  • Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
  • USB connects to computer,automatically generate flaw detection report;

Standard Configurations and Options

Standard Configuration

Designation

Quantity

Main unit 1
4.2V power adaptor 1
probe connecting cable 1
Carrying case 1
Instruction manual 1
Straight probe 1 (Dia 20mm, 2.5MHz)
Angle probe 1 (13×13, 60°, 2.5MHz)



Options



Designation

Quantity

Communication software for PC 1 set
Other probes Straight/ Angle/ Dual types for option

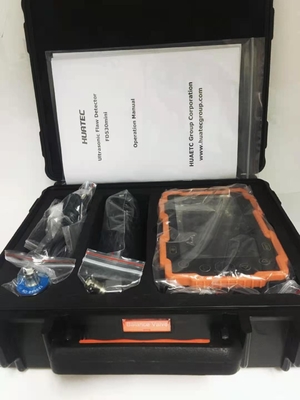

Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector 0

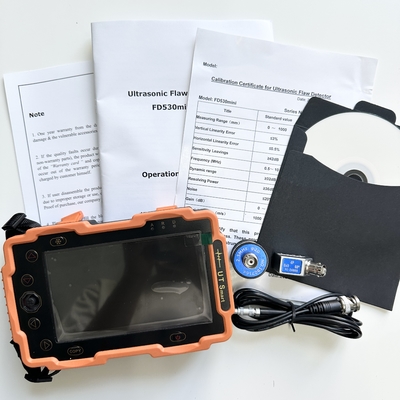

Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector 1

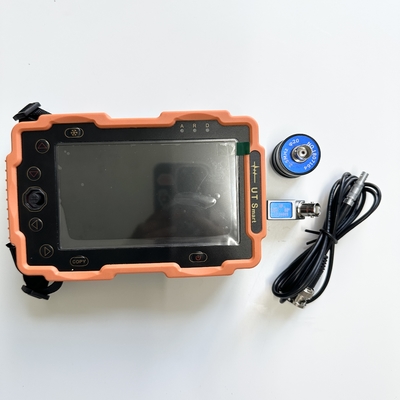

Defects as Crack Pinhole and Inclusion In Metal Non Metal and Composite Ultrasonic Flaw Detector 2
