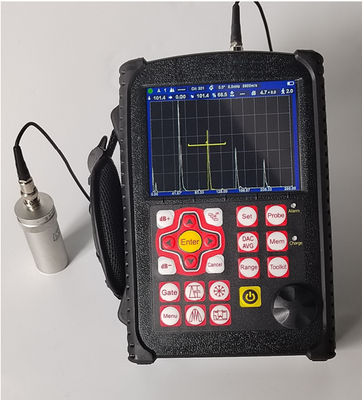

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector
DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector

Gambar besar :  DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: FD310A
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Dalam karton
Waktu pengiriman: 5 ~ 8 hari kerja setelah pembayaran Anda
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50 set per bulan

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector

Deskripsi
Nama Produk: Detektor Kecacatan Ultrasonik Jangkauan: 0-10000 mm, dengan kecepatan baja
Jenis probe: Single Straight, Single Angle, Daul Straight, Daul Anlge, Unit: Inci atau Milimeter
Menyoroti:

ultrasonic flaw detector with DAC AVG

,

adjustable curve ultrasonic flaw detector

,

0-10000mm range ultrasonic detector

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector



★ User friendly dialog interactive helps operations like Calibration, making curves, etc.

★ All tools you need: DAC, AVG, AWS, Weld diagram,etc.

★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.

★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

★ 10-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

★ Crystal clear true-color display. Helpful user interface makes the operation much easier.

★Unlimited USB data storage.,PDF reports output.



Specifications

Range 0-10000 mm ,at steel velocity
Material Velocity 1000~10000m/s
Pulse Repetition Frequency 10-2000Hz
Dynamic range ≥38dB
Linearity: Horizontal +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB
Resolving Power >40dB(5P14)
Sensitivity Leavings >65dB
Reject (suppression) 0 to 80% full screen height
Test Modes Pulse echo, dual element and thru-transmission
Probe Types Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh
Gate Monitors Two independent gates controllable over entire sweep range
Units Inch or millimeter
Power Requirements AC Mains 100-240 VAC, 50-60 Hz
Display Delay -20 to 3400 µs
Probe Delay/Zero Offset 0 to 99.99µs
H×W×D(mm) 240×160×45 (mm)
Weight 1.0kg
Operating Temperature -10℃ to 50℃
Storage Temperature -30℃ to 50℃
Pulse Energy 200V, 300V, 400V, 500V selectable
Rectification Positive half wave, negative half wave, full wave, RF System
Gate Monitors Two independent gates controllable over entire sweep range
Sensitivity 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
Transducer Connections BNC or LEMO



Functions

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptanceor rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity .
Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-disk,the unit can get unlimited memory,PDF reports out put and Upadte system.
Weld diagram.
There are 15 standards of in the unit.
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector 0

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector 1

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector 2

DAC and AVG to Evaluate The Echo, Curve Can Be Modified and Compensated Detector Range 0-10000mm Ultrasonic Flaw Detector 3
