AC DC Magnetic Yoke Flaw Detector 220V BS EN ASTM

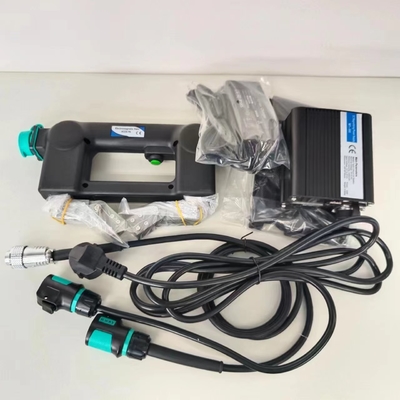

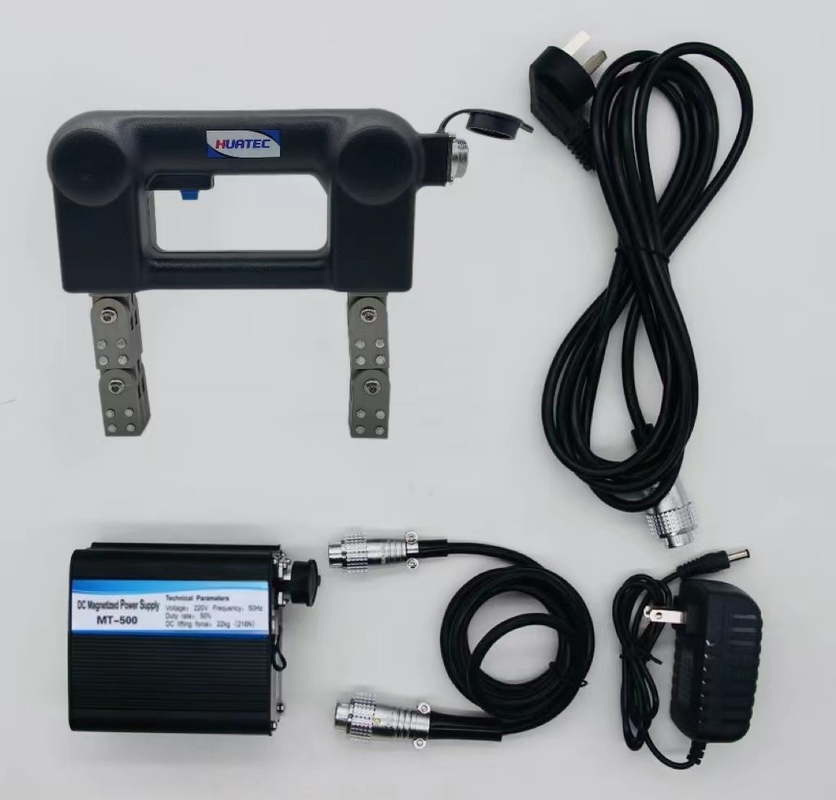

Gambar besar : AC DC Magnetic Yoke Flaw Detector 220V BS EN ASTM

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	ISO
Nomor model:	HCDX-Y9

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1pc
Waktu pengiriman:	5-8 Hari Kerja
Syarat-syarat pembayaran:	T/T, Serikat Barat/Paypal
Menyediakan kemampuan:	500 pcs

Kontak

AC DC Magnetic Yoke Flaw Detector 220V BS EN ASTM

Deskripsi

Tegangan:

220v

Standar:

BS.EN.ASTM

Fungsi:

detektor cacat kuk magnetik

kata kunci:

detektor cacat kuk magnetik

Menyoroti:

AC DC magnetic yoke flaw detector

220V magnetic particle testing equipment

BS EN ASTM flaw detector

MPI MT AC and DC Magnetic Particle Yoke Flaw Detector

Product Attributes

Attribute	Value
Voltage	220V
Standard	BS.EN.ASTM
Function	Magnetic yoke flaw detector

Product Description

The HCDX-Y9 is an AC/DC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC/DC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y9 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y9 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Technical Specifications

Model Items	HCDX-Y9
Electrical Requirements	AC110-115V 50/60Hz, AC220-230V 50/60 Hz, AC240V 50/60Hz
Waveform	AC
Tangential Field Strength	> 2kA/m at midpoint between legs / poles
Working temperature	-10～+40℃
Duty Cycle	50%, max on time is 90 seconds
Ingress Protection (IEC 60259)	IP54
Relative humidity	<80%
Sensitivity	ASTM E1444-05, ASME 2007 page number V
DC power pack	Battery MT500
AC working current	AC2.2A
DC working current	DC 1.5A
Battery charging time	3h
Battery working time	6h
Leg / Pole Span	0~220mm
Leg size	22*22mm
Power cord length	3M
Lifting Force	AC: ≥7.1kg (69N) DC: ≥22.2kg (216N)
Weight	Yoke: 2.3kg DC Battery: 0.6kg
