HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection

HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection
HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection

Gambar besar :  HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HGS-10C
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: USD276/set - USD312/set
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection

Deskripsi
Berdering: 0~200mT~2000mT Ketepatan: ±5%
Kepekaan: 0,01mT, 0,1mT Medan Magnet AC: 50-200Hz
Suhu lingkungan: 5 ℃ -40 ℃ Kelembaban relatif: 20% -80% (tanpa kondensasi)
Catu Daya: Baterai 9V, daya DC konstan
Menyoroti:

Handheld digital flux density tester

,

LCD display Hall probe meter

,

Magnetic inspection Tesla Gauss meter

HGS-10C Handheld Digital Magnetic Flux Density Tester LCD Display Hall Probe Tesla Gauss Meter for Magnet Inspection
Product Specifications
Attribute Value
Range 0~200mT~2000mT
Accuracy ±5%
Sensitivity 0.01mT, 0.1mT
AC Magnet Field 50-200Hz
Temperature of environment 5℃-40℃
Relative humidity 20%-80% (no condensation)
Power Supply Battery 9V, constant DC power
Product Description

HGS-10C Digital Indicator Field Strength Meter is a specialized instrument designed for inspecting and checking flux density, making it one of the most versatile devices in magnetic field measurement applications.

This SCM-controlled digital Tesla meter features handheld operation capability for measuring both DC and AC magnetic fields and flux density. Its portable design, wide measuring range, simple operation, and clear display make it ideal for field use.

Key Features
  • Measurement value/peak value hold function
  • Switchable display units (mT or Gs)
  • Selectable measurement ranges (200mT or 2000mT)
  • Key-activated zero reset function
  • Approximately 20 hours continuous operation with 9V battery
Applications
  • Magnetic field distribution measurement on material surfaces
  • Working magnetic field measurement for instruments such as iron-removing devices, magnet-selecting machines, magnet chucks, magnet spools, and demagnetizing coils
  • Leakage magnetic field measurement on iron surfaces
Technical Specifications
Range 0~200mT~2000mT
Accuracy ±5%
Sensitivity 0.01mT, 0.1mT
AC Magnet Field 50-200Hz
Operating Temperature 5℃-40℃
Relative Humidity 20%-80% (no condensation)
Power Supply Battery 9V, constant DC power
Dimensions 150mm × 70mm × 30mm
Weight N.W: 500g, G.W: 900g
Display 4½ LCD

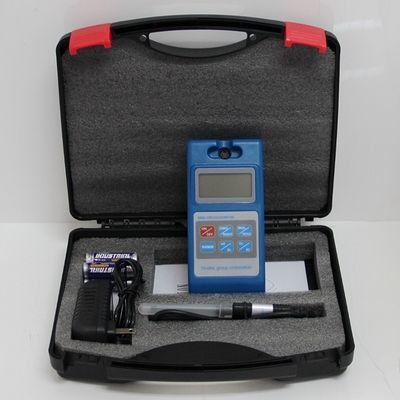

Standard Package Includes
  • HGS10C Digital Gaussmeter (1 pc)
  • Instruction manual (1 pc)
  • Product certificate (1 pc)
  • Probe (1 pc)
  • Batteries (4 pcs)

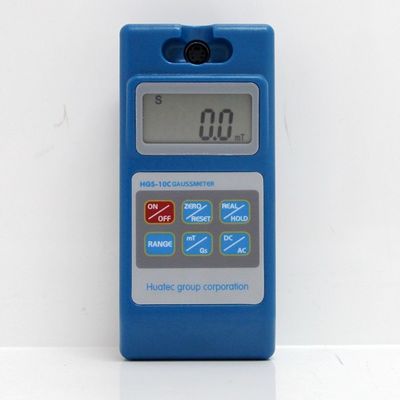

HGS-10C Digital Indicator Field Strength Meter front view HGS-10C Digital Indicator Field Strength Meter side view HGS-10C Digital Indicator Field Strength Meter in use
