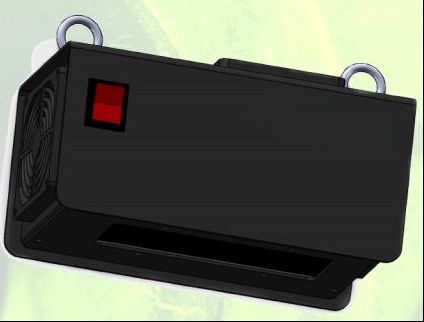

DG-24W Suspension Type Ceiling Mounted LED UV Light for NDT Fluorescent Testing

Gambar besar : DG-24W Suspension Type Ceiling Mounted LED UV Light for NDT Fluorescent Testing

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	DG-24W

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	Kotak kemasan karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Paypal
Menyediakan kemampuan:	10set/bulan

Kontak

DG-24W Suspension Type Ceiling Mounted LED UV Light for NDT Fluorescent Testing

Deskripsi

UV(Light)-FLUX suhu ruangan 25℃ Tandai pada 380mm:	>6000uW/cm2	kesalahan FLUX:	0-40℃ ±10％
Karakteristik distribusi cahaya:	Penilaian tengah	Catu daya:	AC220-240V 50/60Hz
Kekuatan:	LED UV -24 VA	Panjang gelombang:	suhu ruangan25℃ 365nm±3nm（UVA）
Menyoroti:	ceiling mounted LED UV light , NDT fluorescent testing equipment , suspension type UV light

DG-24W Suspension Type Ceiling Mounted LED UV Light for NDT Fluorescent Testing

Characteristic

Big area UV light source, Irradiance>6000uw/cm2

temperature rises less than 8℃

Light source life 30000H

Itme	parameter
Style	Suspension
UV-FLUX Indoor temperature 25℃ 380mm location	>6000uW/cm²
wave length	Indoor temperature 25℃ 365nm±3nm(UVA)
White light content	<22Lux
FLUX error	0-40℃ ±10%
Grading feature	Centre grading
Power supply	AC220-240V 50/60Hz
Power	UV LED -24 VA
Outline dimension	220mm(W)120mm(D)140mm(H)
Weight	3.6kgs

Feature:

24VA power saving of power consumption

30000H life expectancy of light source

UV-A Irradiance>6000uw/cm2

White light Irradiance<22LUX

Chip is original import

0 UV-B/UV-C contained

Small size, Convenient to install

Continuous operation and external surface temperature rises less than 8 Celsius

No need to preheat,instant to reach 100% power
