DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Name: DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection
Brand: HUATEC GROUP CORPORATION
SKU: DG-3W
Price: 26,775.00 USD
Availability: InStock

Semua produk

non-merusak pengujian peralatan
(1480)

Ultrasonik detektor Cacat
(124)

X-Ray Cacat detektor
(154)

Crawler Pipeline X-ray
(20)

Peralatan Pengujian Partikel Magnetik
(193)

Peralatan Pengujian Arus Eddy
(33)

Penampil Film Radiografi
(19)

Blok Kalibrasi Ultrasonik
(50)

Pemeriksaan Ultrasonik
(22)

Perangkat Pemantau Radiasi
(24)

Layar Intensifikasi Timbal
(7)

Penetrameter Jenis Kawat
(6)

mengukur ketebalan lapisan
(109)

kekerasan pengujian mesin
(165)

Tester Kekasaran Permukaan Portabel
(45)

Peralatan Metalografi
(31)

Pengukur Getaran Portabel
(66)

Produk terbaik

Kalibrator getaran digital

Sertifikasi

Ulasan pelanggan

berbagai macam produk NDT, kita bisa mendapatkan semua dalam kelompok huatec. Kami lebih suka membeli dari mereka. Rudolf Shteinman Rusia

—— Rudolf Shteinman

Saya suka layanannya, responsnya sangat cepat, kerja profesional. Aret Turki

—— Aret Kaya

huatec hardness tester, kualitas sangat baik, kami sangat puas dengan portable hardness tester RHL-50. Kumaren Govender Sotuth Afrika

—— Kumaren Govender

I 'm Online Chat Now

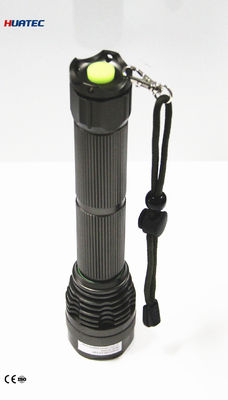

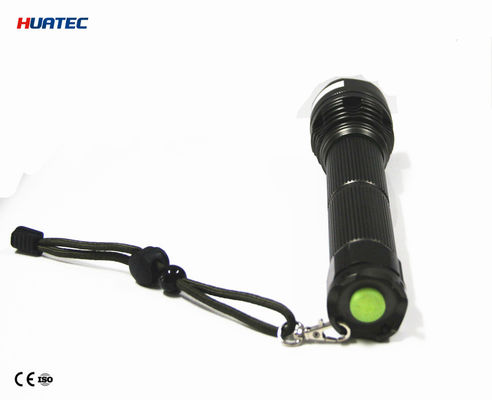

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Gambar besar : DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	DG-3W

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	Kotak kemasan karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Paypal
Menyediakan kemampuan:	10set/bulan

Kontak

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Deskripsi

Gaya:	Gaya Obor	UV (Cahaya) -FLUX Suhu dalam ruangan 25 ℃:	Tipe lampu sorot>10000uw/cm2 Tipe astigmik>2500uw/cm2
kesalahan FLUX:	0-40℃ ±10%	Catu daya:	AC100-240V 50/60Hz
Kekuatan:	LED UV-3VA	Panjang gelombang:	Suhu dalam ruangan 25℃ 365nm±3nm(UVA)
Waktu Pengisian Daya:	2-3 jam	Waktu kumulatif baterai:	LED UV sekitar 8 jam
Menyoroti:	365nm UVLED inspection lamp , high intensity NDT fluorescent lamp , 10000μW/cm² UVLED testing equipment

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection

Characteristic
Irradiance Spotlight type>10000uw/cm2
Astigmic type>2500uw/cm2
Light source life 30000H

Item	parameter
Style	torch style
UV(Light)-FLUX Indoor temperature 25℃	Spotlight type>10000uw/cm2 Astigmic type>2500uw/cm2
FLUX error	0-40℃ ±10%
Grading feature	Centre grading
Power supply	AC100-240V 50/60Hz
power	UV LED-3VA
wave length	Indoor temperature 25℃ 365nm±3nm(UVA)
Outline dimension	47mm*225mm
battery voltage	3.7V*2
Charging time	2-3H
Battery cumulative time	UV LED about 8H

Feature:
3AV power saving of power consumption
30000H life expectancy of light source
Imported light source UVLED
0 UV-B contained
Battery endurance 8hrs
Pre-alert and protection of low power
Weight 360g only including batteries
Build in battery,no wiring outside
three minute delay(power saving)//constand lighting,mode can be switched
continuous operation and external surface temperature rises less than 5 celsius
No need to preheat,instant to reach 100% power

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 0

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 1

DG-3W High Intensity 365nm UVLED 10000μW/cm² Inspection Lamp For NDT Fluorescent Inspection 2
