HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe
HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

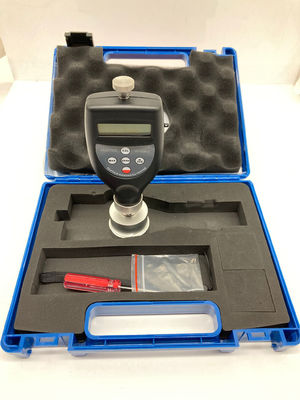

Gambar besar :  HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HT-6590-5
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: USD275/set - USD310/set
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

Deskripsi
Indentor: Bola Φ5mm Rentang tampilan: 0-100H (tanda gradasi kekerasan)
Rentang pengujian: 10-90H (tanda kelulusan kekerasan) Resolusi: 0,1 jam
Ketepatan: ≤±1 jam Tekanan Uji: Kira-kira. 12,5N
Mengukur Kekuatan Pegas: 0,55-8,065N Diameter Skala: 51mm
Beroperasi: Suhu:0~40ºC Kelembapan:<80%RH
Menyoroti:

Textile winding density tester

,

Warp durometer with convertible probe

,

Non-destructive textile testing equipment

HT-6590-5 Textile Winding Density Tester Warp Durometer with Convertible Probe


Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

* With average calculate, peak value deposit function.

* Apply USB data output to connect with PC.

* Blue tooth data output option.

Model HT-6590-5
Parameters Tested value/Mean value/Max.value
Indenter Ball Φ5mm
Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy ≤±1H
Battery Indicator Low Battery Indicator
Auto Switch Off √
Depth Of Indentation 0-2.5mm
Test Pressure Approx. 12.5N
Measuring Spring Force 0.55-8.065N
Scale Diameter 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmΦ (when using the plane end of the probe)
Operating Temperature:0~40ºC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit
Carrying Case
Operation Manual, calibration certificate
Optional Accessories USB Data Cable with Software
Blue tooth Data Adapter with Software

Principle

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.


Application

To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.

Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe 0HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe 1
