High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

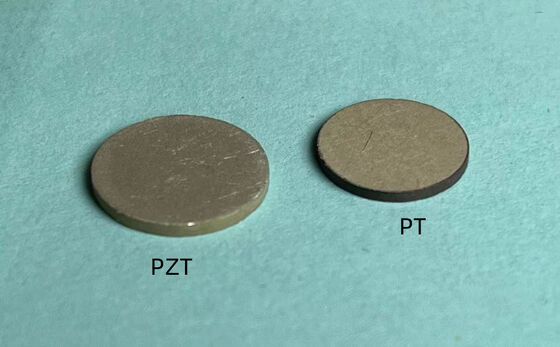

Gambar besar : High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Kemasan rincian:	Kemasan karton luar
Waktu pengiriman:	5-7 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	10 set/bulan

Kontak

High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Deskripsi

Metode komposit:	Komposit tipe 1-3	Model bahan dasar:	PZ44
Toleransi bawaan:	±0,05mm	frekuensi komposit kristal tunggal:	5-10 MHz
frekuensi komposit keramik:	0,5-15MHZ
Menyoroti:	ceramic single crystal wafer , NDT sensor composite wafer , high precision testing wafer

High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Performance Features

High sensitivity
High bandwidth
Low acoustic impedance
Good matching with water / human tissue / tested medium
Low ringing time
High signal-to-noise ratio

1	Type 1-3 ceramic composite wafers	Example: Frequency MHz/ Length × width mm
Overall dimensions
Wafer length L(mm)			Default tolerance±0.05mm	Note: The single crystal composite frequency is 5-10 MHZ, and the ceramic composite frequency is 0.5-15 MHZ. Other frequencies require technical confirmation
Wafer width W(mm)			Default tolerance±0.05mm
Wafer thickness H(mm)/ wafer frequency(MHz)			Default tolerance for thickness±0.005mm
pitch(mm)	(The size of the small crystal column is added with a knife slit)		It would be best if the customer could provide it. Some Osos have default Settings
Knife slit(mm)
Performance parameters
Composite method	Type 1-3 composite
Base material model	PZ44
Process requirements
Does the electrode need to be edge-wrapped	When edge banding is required, chamfering will be done by default. The drawings provided by the customer are attached
Is an isolation slot needed	When an isolation tank is required, the customer shall provide the drawings (including dimensions and polarity) as attached
Coating requirements	PVD:Gilding
Whether polarization is needed	Default polarization
Whether the positive and negative poles are marked	By default, the red marker dot is the positive pole
Other special requirements	Please describe it in detail if necessary
Test report
ULSO LOGO report	√
Logo-free report
Packaging requirements
Independent packaging	√
Not packaged independently
