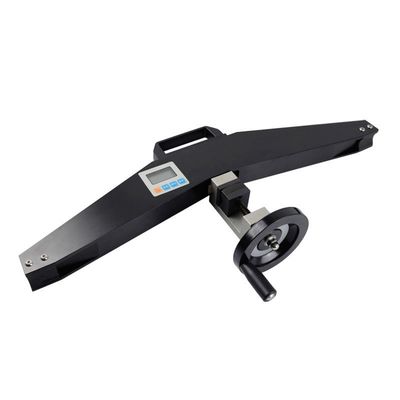

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing
HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing

Gambar besar :  HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HRT-DS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Harga: USD3495-USD3950/SET
Kemasan rincian: kotak paduan aluminium + kemasan karton Luar
Waktu pengiriman: 3-5 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing

Deskripsi
Diameter tali: ¢6～¢40mm. Tingkat Akurasi: 3～6% dari fungsi maksimum (tergantung pada bentuk dan fitur tali).
Akurasi Pengukuran: kesalahan 3% atau kurang
Menyoroti:

Non-dismantling rope tension gauge

,

Steel cable testing gauge

,

High-strength rope tension tester

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing


Main usage and application

Ropes and Steel Wire Ropes Tension Testing Instrument HUATEC HRT-DS can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, cable way industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.


Product characteristics

  1. It has the rope structure with tension force, and can directly measure without disassembly.
  2. It has the light weight, simple structure, convenient operation, and applies to any situations.
  3. It has the stable performance, high measurement accuracy, with automatic system compensation function.When the specification of the tested rope the same as the rope tension testing instrument rope number, the measurement accuracy can reach 3% error or less within the rated measurement range.
  4. It has broader range of measurement, with 19 kinds of rope diameter measuring functions.
  5. Applied range:applied to flexible, stretched ropes,such as various steel wire ropes, high-strength ropes etc.
  6. Accuracy grade: 3～6% of maximum function (depending on the rope form and features).
  7. Rope Diameter: ¢6～¢40mm.

Specifications and model

Model HRT-DS-20KN
Number 1 2 3 4 5 6 7 8
Diameter Φ6 Φ8 Φ9 Φ10 Φ12 Φ14 Φ16 Φ18
Load division value(KN) 0.01
Output connector Rs232 9-hole socket
Power Rechargeable battery charger (charging voltage 100V～240V)
Working temperature 5℃～35℃
Transport temperature -10℃～60℃
Relative humidity 15%～80%RH
Working environment No vibration focus and corrosive media around
Net weight 4.7kg
Dimension 650×375×100(mm)


Model HRT-DS-50KN
Number 1 2 3 4 5 6 7 8
Diameter Φ12 Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ26
Load division value(KN) 0.01
Output connector Rs232 9-hole socket
Power Rechargeable battery charger (charging voltage 100V～240V)
Working temperature 5℃～35℃
Transport temperature -10℃～60℃
Relative humidity 15%～80%RH
Working environment No vibration focus and corrosive media around
Net weight 4.7kg
Dimension 650×375×100(mm)


Model HRT-DS-100KN
Number 1 2 3 4 5 6 7 8
Diameter Φ20 Φ22 Φ24 Φ26 Φ28 Φ30 Φ32 Φ34
Load division value(KN) 0.1
Output connector Rs232 9-hole socket
Power Rechargeable battery charger (charging voltage 100V～240V)
Working temperature 5℃～35℃
Transport temperature -10℃～60℃
Relative humidity 15%～80%RH
Working environment No vibration focus and corrosive media around
Net weight 7kg
Dimension 650×375×100(mm)


Model HRT-DS-200KN
Number 1 2 3 4 5 6 7 8
Diameter Φ26 Φ28 Φ30 Φ32 Φ34 Φ36 Φ38 Φ40
Load division value(KN) 0.1
Output connector Rs232 9-hole socket
Power Rechargeable battery charger (charging voltage 100V～240V)
Working temperature 5℃～35℃
Transport temperature -10℃～60℃
Relative humidity 15%～80%RH
Working environment No vibration focus and corrosive media around
Net weight 7kg
Dimension 650×375×100(mm)

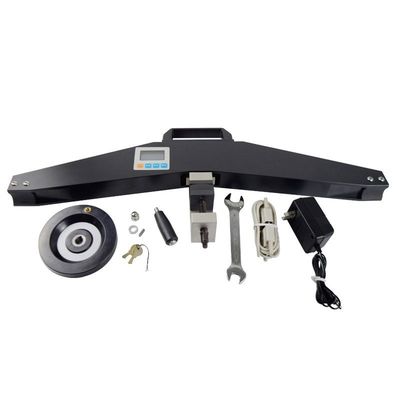

HRT-DS-20KN, HRT-DS-50KN Packing list

User manual 1
Check certificate 1
Warranty card 1
Certificate 1
Software 1
Charger 1
Aluminum key 1
RS232 Cable 1
Tension Meter 1
Hand wheel 1
Cap nut and Flat key 1
Aluminum box 1
Dryer 1


HRT-DS-100KN, HRT-DS-200KN Packing list

User manual 1
Check certificate 1
Warranty card 1
Certificate 1
software 1
charger 1
Aluminum key 1
Rs232 cable 1
Tension meter 1
Aluminum box 1
Dryer 1

HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing 0HRT-DS Non-Dismantling Rope Tension Gauge for Steel Cable & High-Strength Rope Testing 1
