PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation

PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation
PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation

Gambar besar :  PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: PAUT
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Harga: USD345-USD390/SET
Kemasan rincian: Kotak ABS + kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation

Deskripsi
Bahan: 1018 baja Standar: IIW ISO 19675：2017
Menyoroti:

PAUT ultrasonic phased array calibration block

,

radius calibration block with DAC curve

,

NDT equipment for ultrasonic testing

PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation

 The Phased Array Radius Calibration Block is a general purpose Phased Array calibration block used for evaluation of system performance characteristics. Use it as baseline block to determine long-term instrument performance changes, generate DAC curves, evaluate focusing ability, beam steering capability, and system resolution. With a variety of SDH targets at various metal paths, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonic capabilities.The PAUT IIW Block, made in accordance with IIW ISO 19675:2017 .

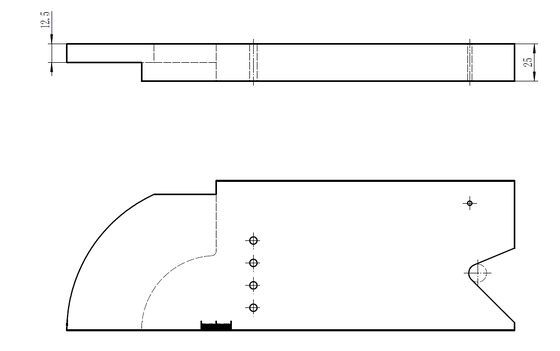

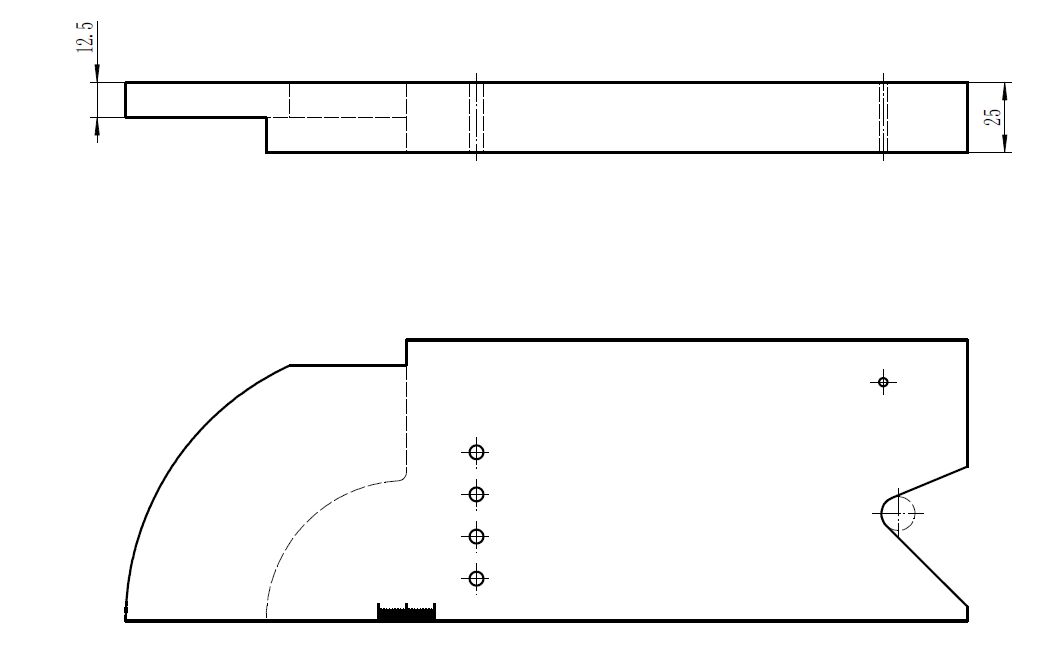

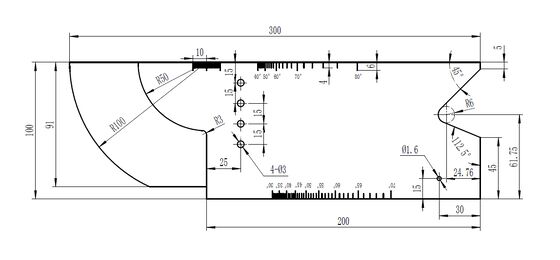

Geometry:

Dimensions 25mm wide x 100mm tall x 300mm long, with 100mm and 50mm radii
Material 1018 Steel,

PAUT Ultrasonic Phased Array Radius Calibration Block with DAC Curve Generation 0
