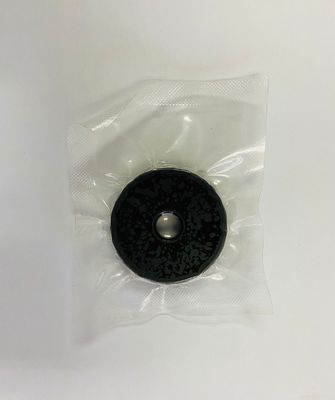

MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks

MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks
MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks

Gambar besar :  MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: MTU-3
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Harga: USD460-USD520/SET
Kemasan rincian: Kotak ABS + kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks

Deskripsi
Bahan: 90MnCrV8 Kekerasan Permukaan: HRC63-70
Spesifikasi: φ50±0,05 X φ10,5±0,05X9,7±0.05 Standar: ASTM E1417,GB/T15822-2005
Menyoroti:

MTU-3 magnetic particle testing block

,

Type 1 NDT reference block

,

magnetic particle testing with natural cracks

MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks


EN ISO 9934-2:2002

Cracked Test Piece for the Evaluation of Magnetic Particles

The MTU-3 Test Block is used to check the sensitivity of magnetic particle materials, assess material degradation and assess bath contamination. This two-sided block has a variety of indications ranging in size from small to large and each block has a completely unique crack pattern that mimics natural cracking. Can be used with fluorescent or visible particles. For application, ensure the block is free from dust, oil and other repellent materials before applying a well-mixed inspection medium. Compare your results with the supplied reference photograph before cleaning your block immediately to avoid permanent indications.


Test block name MTU-3 Reference Block Standard ASTM E1417,GB/T15822-2005
Material 90MnCrV8 Specification φ50±0.05 X φ10.5±0.05X9.7±0.05
Surface hardness HRC63-70 Bolt hardness tester HRC64
Magnetization method

Center conductor

method

 Peak current DC 1000mA


MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks 0

MTU-3 Magnetic Particle Testing Reference Block Type 1 with Natural Cracks 1
