HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing
HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

Gambar besar :  HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: Seri HCDX-Y45
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Kemasan rincian: kotak paduan aluminium + kemasan karton Luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

Deskripsi
Kepekaan: Benda uji standar A1 15/100; Tampilan cacat yang jelas Periksa jarak kutub: 40mm-200mm
Kekuatan angkat: AC≥45N DC≥177N intensitas lampu uv: ≥5000uw/cm²(HCDX-45DC dan HCDX-Y45Z memiliki fungsi ini)
Penerangan lampu putih: ≥1450Lux (hanya bila terhubung ke AC)
Menyoroti:

Portable AC DC Magnetic Yoke

,

Magnetic Particle Testing Yoke with UV Light

,

Non Destructive Testing Equipment with White Light

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing


Uv lamp intensity: ≥5000uw/cm²

White lamp intensity: ≥1450Lux



HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light



1. Product introduction

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Y45DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.



2. Technical parameters

Sensitivity A1 15/100 standard test piece; Clear display of defect
Power supply

HCDX-Y45: AC220V

HCDX-Y45DC: AC220V and DC12V

HCDX-Y45Z: AC220V
Probe pole distance 40mm-200mm
Lifting force AC≥45N DC≥177N
Illumination of white lamp ≥1450Lux (only when connected to AC)
UV lamp intensity ≥5000uw/cm²(HCDX-45DC and HCDX-Y45Z has this function)
Machine size 210mm (length) *48mm (width) *150mm (height)
Yoke weight 2.0 kg



3. Configuration

HCDX-Y45 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc


HCDX-Y45DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc


HCDX-Y45Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

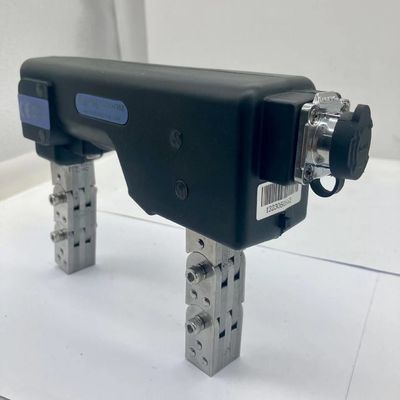

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing 0

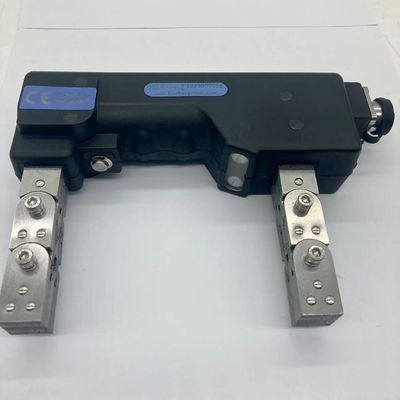

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing 1
