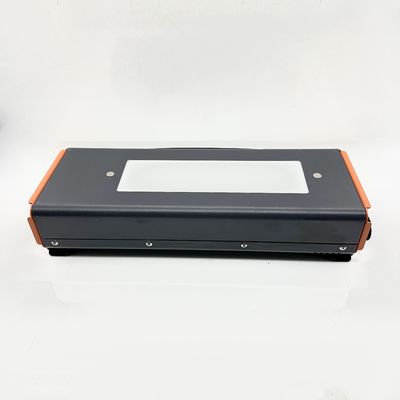

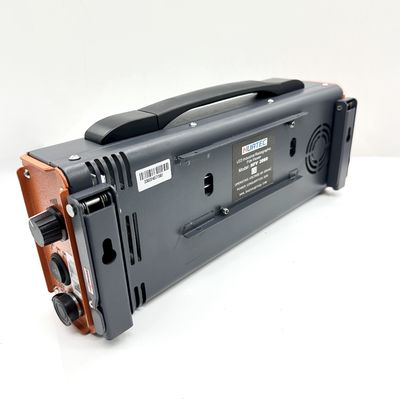

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection
HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection

Gambar besar :  HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HFV-3010M
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD1138-USD1287/SET
Kemasan rincian: Kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection

Deskripsi
Tegangan masukan adaptor: 85-264VAC/47-60Hz Daya: 200W Intensitas Cahaya Maksimal: >100,000cd/㎡
Kepadatan film: >4.0D Menurut laporan inspeksi Suhu permukaan: <18° Celsius (Terus bekerja 24 jam di bawah)
Area Tampilan Seragam: 95% Layar Penuh Rentang Pengukuran: 0,00-5,00 hari
Tampilan Visual: LCD 4-bit Modus kontrol: Manual + Sakelar kaki
metode pendinginan: Pendinginan udara paksa
Menyoroti:

LED industrial film viewer

,

NDT inspection densitometer

,

built-in densitometer film viewer

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection


Features:

Maximum Light Intensity: >100,000cd/㎡

Easily View >4. 0 Density

Pure White LED Light

50,000 Hour Lamp Life

Low Power Consumption

Fan cooling

Foot Switch

Uniform Viewing Area: 98% Full Screen

Dimmer Control: 0% to 100% continuous

Surface temperature: <18°

Built-desktop stand

Design: Modern, Stylish and Simple

Power Requirements: 85-264VAC/47-60Hz


Specifications:

MODEL:

HFV-3010M

Pecifications:



Measuring range:

0.00-5.00D;

Measurement accuracy:

±0.05D;

Calibration scope:

arbitrary value;

Visual display:

4-bit LCD;

Optical frequency sensor:

American TAOS sensor;

Probe dimension:

diameter is 3mm;

Power supply:

built-in 3200mA lithium battery;

Specifications:



Adapter Input voltage:

85-264VAC/47-60Hz

Power:

120W

Maximum Light Intensity:

＞100, 000Cd/㎡

Surface temperature:

<18° Celsius (Continuance working 24 hours under)

Uniform Viewing Area:

95% Full Screen

Dimmer Control:

0% to 100% continuous

Control mode:

Manual + Foot-switch

Cooling Method:

Forced air cooling

Dimensions:

530mm*60mm*155mm (L*W*H)

Substrate-mask window:

220mm*80mm (L*W)

Packing dimensions:

60cm*24cm*18cm

Weight:

6.5. 0KG



Package Contents:

LED viewer with densitometer HFV-3010M 1pc

Foot switch 1pc

AC power cord 1pc

Viewing mask 1pc

Magnetic film holder 2pcs

Magnetic ruler 1pc

User's manual 1pc

Calibration certificate 1pc



Trouble shooting Cause of the fault:

The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection 0

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection 1

HFV-3010M LED Industrial Film Viewer with Built-in Densitometer for NDT Inspection 2
