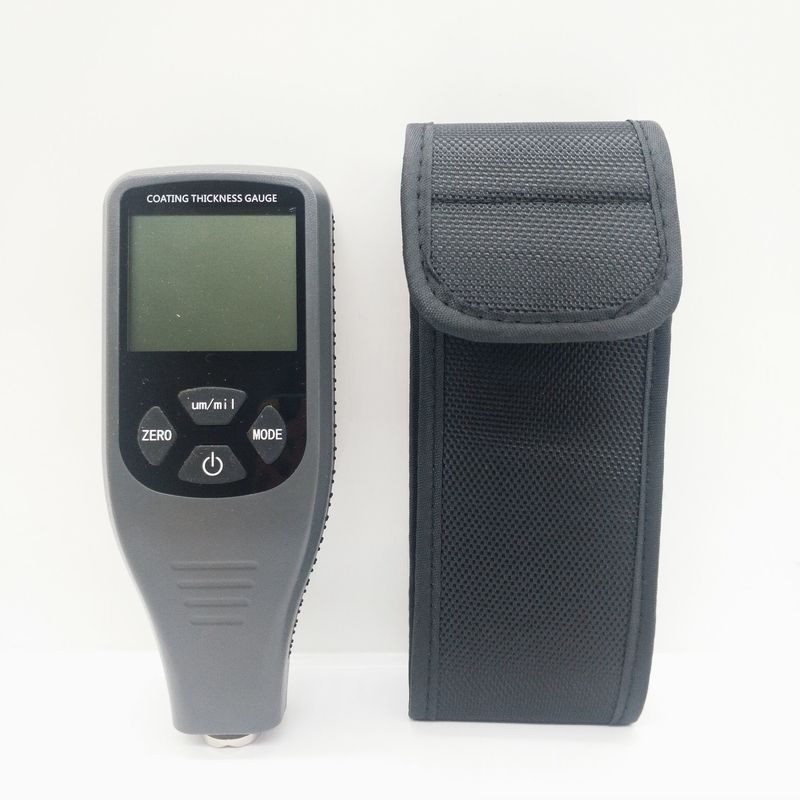

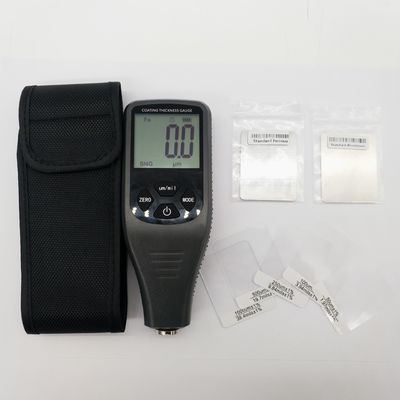

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition
TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition

Gambar besar :  TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG1956
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD69-USD78/SET
Kemasan rincian: Kemasan karton luar
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Western Union, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition

Deskripsi
Jangkauan: 0~1300um 0~51,2 juta Ketepatan: ±(2,5%+1um) ±(2,5%+0,04 juta)
Resolusi: 0,1um/0,01mil Kalibrasi: Poin: NOL/50/100/250/500/1000um
Lingkungan Operasi: Suhu:0~40℃(32~104℉) Kelembaban:20%~90%RH
Menyoroti:

digital coating thickness gauge

,

coating thickness gauge with probe

,

F&NF probe thickness meter

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition 0

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition 1

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition 2

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition


Features:
FSTN LCD Display

Built-in Black Light

Integral Probe F&NF, Auto detecting attribute of substrates

Nice shell design for easy reading

Built-in Silicone Slip Strip

Measurement Range: 0~1300um

Accuracy: ±(2.5%+1um)

Resolution: 0.1um

Zero Calibration and 50/100/250/500/1000um Calibration Points

5 minutes auto power off to saving power

Power Supply: 4 x AAA batteries

Operating Temperature: 0 to 40℃ (32 to 104℉)

Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g (4.41 oz)


Technical specifications


 Probe F Probe N
Principle Magnetic Induction Eddy Current
Range

0~1300um

0~51.2mil

0~1300um

0~51.2mil
Accuracy

±(2.5%+1um)

±(2.5%+0.04mil)

±(2.5%+1um)

±(2.5%+0.04mil)
Resolution 0.1um/0.01mil 0.1um/0.01mil
Calibration Points: ZERO/50/100/250/500/1000um
Units um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate 0.5mm(0.02”) 0.3mm(0.012”)
Power 4 x AAA batteries
Operation Environment Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Size

155mm x 62mm x 35mm

(6.10” x 2.44” x 1.38”)
Weight 125g(4.41oz)
