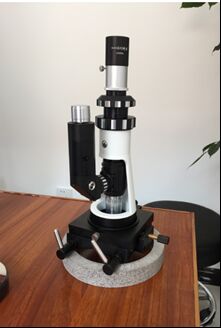

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces

Gambar besar : HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	HSC-500

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD596/set - USD675/set
Kemasan rincian:	Kotak kemasan karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Paypal
Menyediakan kemampuan:	10set/bulan

Kontak

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces

Deskripsi

Lensa mata:	WF10X/ф6	Objektif:	10X, 20X,50X
Pembesaran Total:	100X-500X	Rentang fokus:	25mm
Panjang tabung mekanis:	160mm
Menyoroti:	portable metallurgical microscope , metallurgical microscope for large workpieces , vertical illumination metallurgical microscope

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces

Product Description:

HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.

Applicable to metallographic inspection of various work pieces which is large or unable to make sample.

No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.

This machine can identify different metal and alloy organization structure.

Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.

Main Parameters:

No.	Item	Specification
1	Eyepiece	WF10X/ф6
2	Objective	10X, 20X,50X
3	Total Magnification	100X-500X
4	Focusing range:	25mm
5	Mechanical tube length:	160mm
6	Power supply	3.6v
7	Weight	N.W.: 0.75kg G.W.: 0.9kg
8	Dimension	Instrument dimension: 230X110X70(mm)

Standard configuration:

No.	Item	Main Specification	Unit	Quantity
1	Main unit	HSC-500	Set	1
2	Objective	10X, 40X,50X (optional)	Piece	1 each
3	Eyepiece	10X	Piece	1
4	Illuminator	Installed on the main body	Piece	1
5	Battery charger		Piece	1
6	Magnetic base		Piece	1
7	C mount adapter		Piece	1
8	Instruction manual		Piece	1
9	Calibration certificate		Piece	1

Optional parts:

Eyepiece: 12.5X

Objective: 50X

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces 0

HSC-500 Portable Metallurgical Microscope Vertical Illumination for Large Workpieces 1
