HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing

HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing
HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing

Gambar besar :  HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HD-104
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: USD575/set - USD650/set
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing

Deskripsi
Rentang detektor: 9V ——300µm;67,5V—500µm;90V—500µm Kepekaan: 9V—90KΩ+5% ;67,5V—125KΩ+5% ;90V—400KΩ+5%
Akurasi tegangan: +5% Baterai: Baterai isi ulang li-pol 11.1V/1100mA
Kekuatan: ≤0,5W Indikasi tegangan: Indikasi LED untuk setiap tegangan
pengisian baterai: Pengisi daya 12VDC
Menyoroti:

portable pinhole detector for insulation

,

multi-voltage leak testing detector

,

insulating coating pinhole detector

HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing
Key Features

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.

  • Supplied ready to use
  • Automatic sensitivity calibration and voltage checks
  • Low battery indicator
  • Visual and audible alarms
  • Integral and separate wand functionality
  • A wide range of fully interchangeable wand accessories
  • Easy release snag proof cables
  • Large standard sponge
Technical Specifications
Attribute Value
Detector range 9V ——300µm; 67.5V—500µm; 90V——500µm
Sensitivity 9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5%
Accuracy of voltage +5%
Battery Li-pol rechargeable battery 11.1V/1100mA
Power ≤0.5W
Weight main unit 500g
Size 290×53×53mm
Voltage indication LED indication for each voltage
Battery charging 12VDC charger
Sponge size 170×70×30mm
Detecting rod length 195mm
Earth wire length 4m

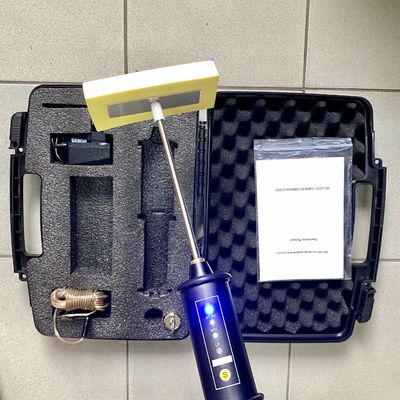

Standard Delivery
  • HD-104 pinhole main unit (1pc)
  • Standard wand and flat sponge (1pc)
  • Earth wire (1pc)
  • Charger (1pc)
  • Carrying case (1pc)
  • Manual (1pc)
  • Warranty card (1pc)
HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing 0 HD-104 Portable Multi-Voltage Pinhole Detector for Insulating Coating Leak Testing 1
