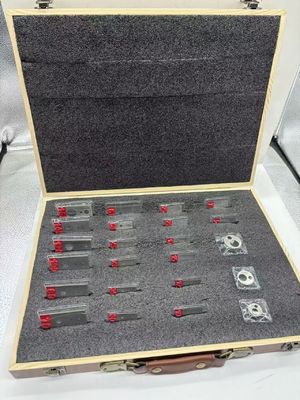

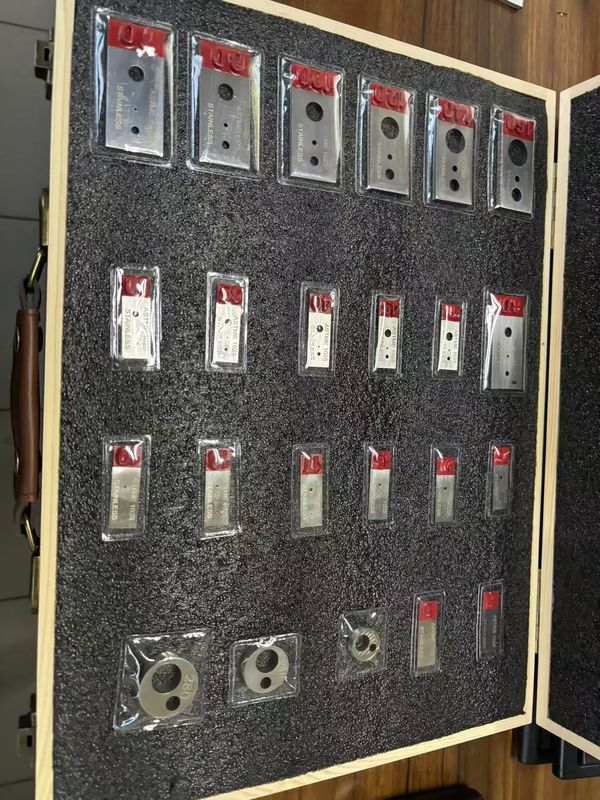

Radiography Penetrameter X-Ray Image Quality Indicator

Radiography Penetrameter X-Ray Image Quality Indicator

The primary purpose of an IQI is to verify the sensitivity of the overall radiographic testing system . Since the visibility of a flaw depends on image quality, the IQI provides a proven method to confirm that the exposure, film processing, and viewing conditions were adequate.

Application field (industry use)
IQI is mandatory in any industry that relies on radiology to ensure safety and quality.
Oil and gas: Inspection of pipeline winding welds and pressure vessels (usually in accordance with API 1104 or ASME V).
Aerospace: Key component inspection (fuselage, engine, landing gear) to detect microcracks in lightweight alloys.
Automobiles: Quality control is carried out on engine cylinder blocks, suspension components, and castings to detect porosity.
Power generation: Evaluate boiler tubes, turbines, and nuclear reactor components.
Structural steel and construction: Verify the welding integrity of bridges, buildings, and heavy machinery.
