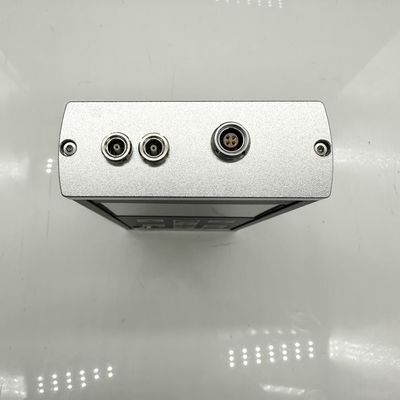

TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester

TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester
TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester

Gambar besar :  TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-1000C
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: USD1840/set - USD2080/set
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester

Deskripsi
Kisaran kecepatan suara: 1 ~ 19999 m/s Resolusi: 1 m/s, 0,001 mm / 0,0001 inci
Frekuensi pemeriksaan: 2MHz,3MHz,5MHz,7.5MHz Penyimpanan Data: 1000 pengukuran, termasuk ketebalan, kecepatan suara, waktu, dll
Menyoroti:

ultrasonic velocity gauge tester

,

spheroidization rate testing equipment

,

non-destructive ultrasonic gauge tester

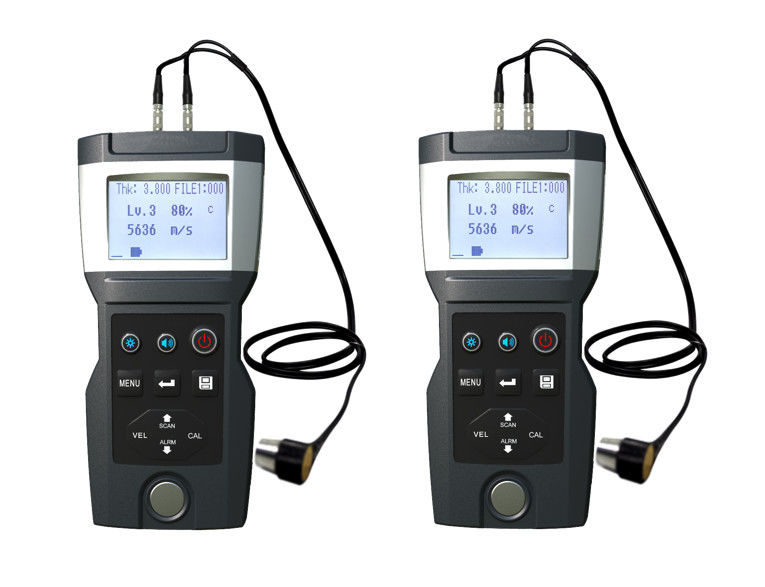

TG-1000C Online Spheroidization rate Ultrasonic Velocity Gauge Tester


TG-1000C is a portable online measurement & command control ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.


Features:

  • High precision timing chip & V-Path model used for precision measurement
  • Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
  • Velocity can be directly measured and used in evaluation of spheroidization rate
  • Bluetooth & Mini-USB interface for printing & communication, host software upgradable


  • Main Functions:

  • Scan mode, min/max capture mode, and alarm mode support
  • Thickness can be measured by a known velocity
  • 16 stages gain adjustable
  • Storage capacity of 1000 measurements with velocity, thickness, time, etc.
  • Communicate with PC or smart phones

Technical Parameters

Sound Velocity Range 1 ~ 19999 m/s Thickness Range See Probe Parameters
Resolution 1m/s, 0.001mm / 0.0001inches Accuracy See Probe Parameters
Measuring Period 4 times per second Probe Frequency 2MHz,3MHz,5MHz,7.5MHz
Calibration Mode Probe Calibration, Real-time Temperature Compensation Data Storage 1000 measurements, including thickness, sound velocity, time, etc.
Calibration block 4.000mm(Steel) Gain Adjustable 16 Stages
Measuring Mode scan, min/max capture, alarm Thickness measure Support
Display English
FSTN LCD Display with backlight		 Display Content Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc.
Communication Bluetooth & Mini-USB interface, virtual serial port protocol Print Optional portable Bluetooth thermal printers
Power Supply 3.7V Li-Ion chargeable battery Power off Timeout power off, low battery power off
Usage Temperature -10 ~ 50 °C Storage Temperature -30 ~ 60 °C
Size 157mm*78mm*37mm Weight About 260g
Shell Material ABS & PC alloy Box Material ABS (IK08 / IP67)


Probe parameters

Label 5M Φ10 5M PT-08 7.5M PT-06 2M ZT-12 3M GT-12
Measure Range (Steel) 0.75~300 mm 0.8~225 mm 0.8~50 mm 3.0~400 mm 2.0~200 mm
Min. Measure Diameter Ø25 x 3 mm Ø20 x 1.2 mm Ø15 x 1.2 mm Ø30 x 4 mm Ø25 x 3 mm
Probe Diameter 13mm 11mm 9mm 17mm 15mm
Probe Frequency 5MHz 5MHz 7.5MHz 2MHz 3MHz
Contact Temperature -10~60°C -10~60°C -10~60°C -10~60°C -10~310°C

Version Comparison

Version Online measurement Command control
TG-1000 x x
TG-1000C √ √
