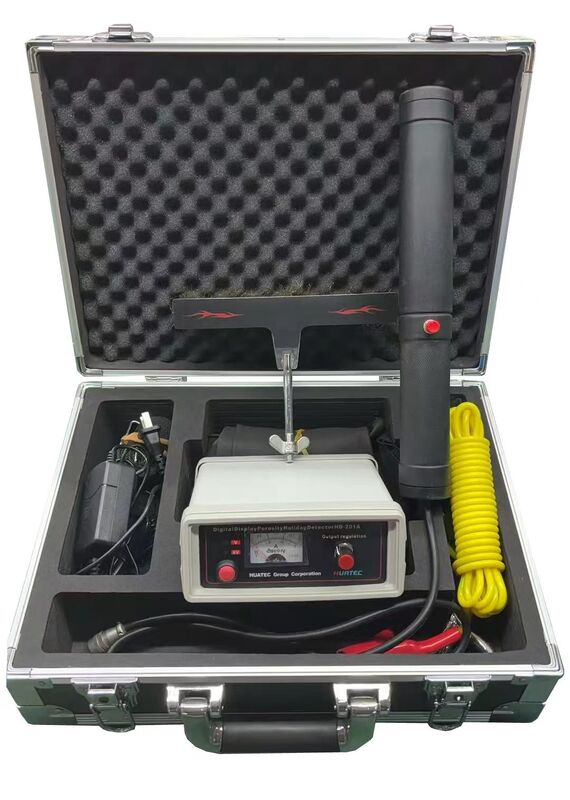

HD-201A/B/C Dial Porosity Holiday Detector

HD-201A/B/C Dial Porosity Holiday Detector

【Function】
HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.

【Characteristic】
1,Low power consumption, small size, light weight；
2,Simple operation

【Main technical index】
1,Measuring range:

3,Output high voltage:

4,Display:pointer
5,High voltage control system:Ordinary potentiometer adjustment
6,DC supply:12v
7,Consumption:＜5w
8,Alarm delay:1-2s

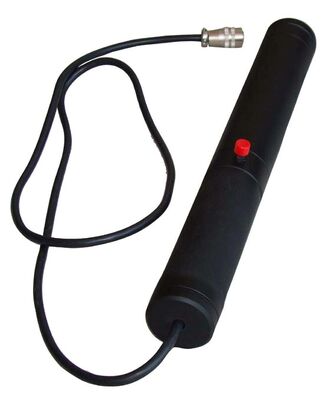

9,High voltage probe:Electronic high voltage generator
10,Packing:metal chest
11,Main dimension: 165mm×155mm×68mm
12,Weight:1.5kg(Including battery)

【Accessories】

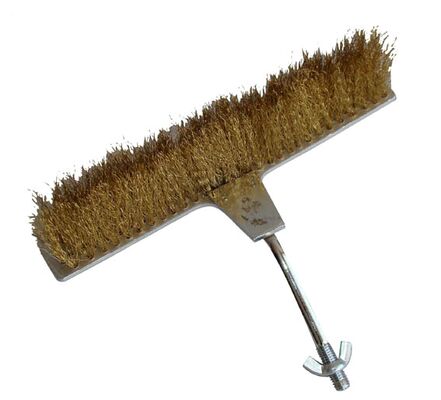

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual

【Principle】
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
