ISO 3452-3 Type 2 reference block

ISO 3452-3 Type 2 reference block
ISO 3452-3 Type 2 reference block ISO 3452-3 Type 2 reference block

Gambar besar :  ISO 3452-3 Type 2 reference block

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Nomor model: Blok referensi ISO 3452-3 Tipe 2
Kontak

ISO 3452-3 Type 2 reference block

Deskripsi
Nama: Blok referensi ISO 3452-3 Tipe 2 menggunakan: Digunakan untuk memverifikasi pengujian fluoresensi atau penetran pewarna
Standar: ISO 3452-3 Aplikasi: Dirgantara, manufaktur otomotif, bejana tekan, peralatan khusus, pemrosesan mekanis, dan energi list
Menyoroti:

ISO 3452-3 Type 2 reference block

,

Non Destructive Testing reference block

,

Type 2 penetrant testing block

ISO 3452-3 Type 2 reference block


Core purpose
·Type 1 reference test block: used to determine the sensitivity level of the penetrant product series (such as whether it belongs to level 1 or level 2 ultra-high risk), mainly used for product rating.
·Type 2 reference test block: used to verify the routine performance of fluorescent or dye penetrant detection systems, ensuring the normal testing process.

Type II Penetrate block : ISO  3452-3:2013(E),GB/T18851.3,JIS  Z  2343-3:2001

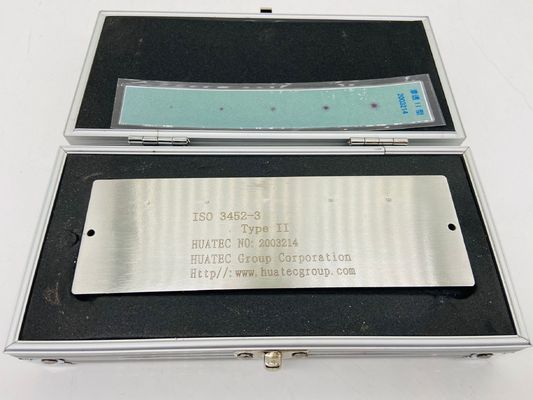

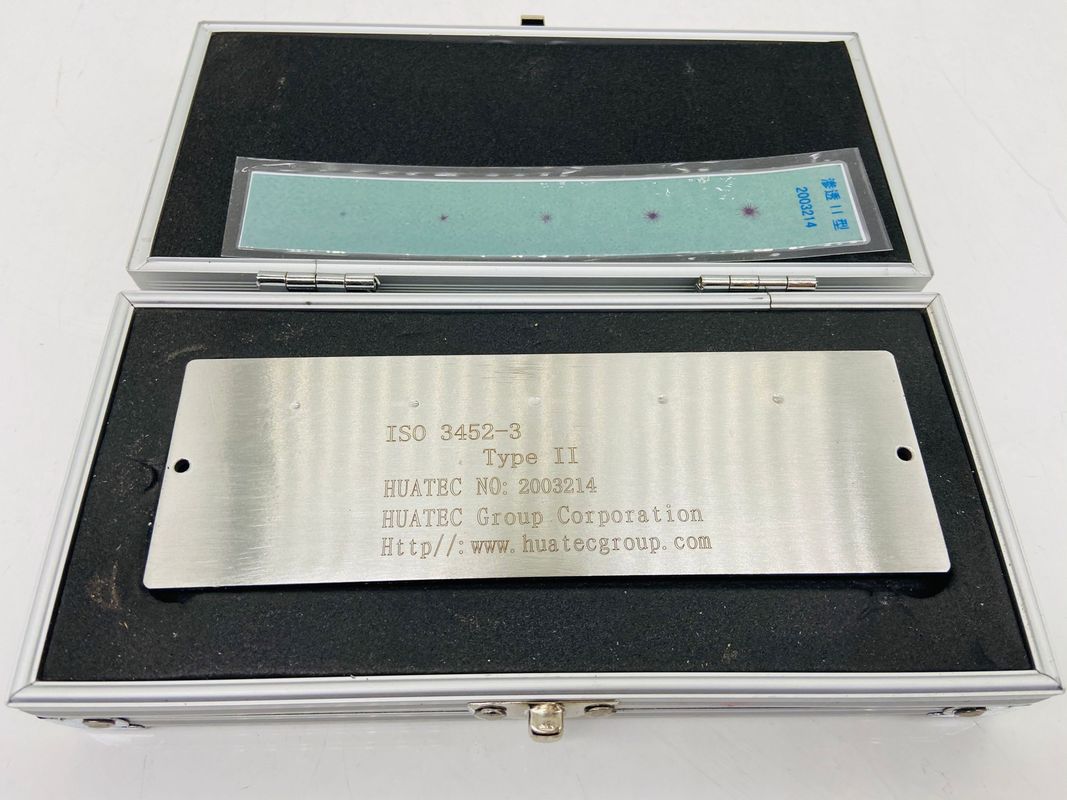

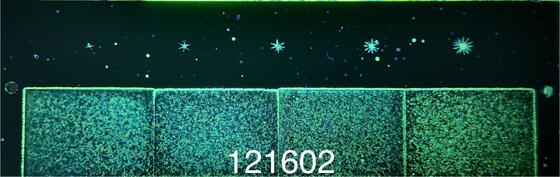

The ISO Panel is made from a 0.100" (2.5 mm) stainless steel plate. Half of the test surface is hard coated with a 0.0024" (60 µm) hard alloy material. Five crack centers are evenly spaced in the hard coated strip. The crack centers are made up of circular patterns forming a star.
Each test panel is labeled with the identity of the supplier and serial number. A declaration stating conformance to EN ISO 3452-3 and in line with EN 10204 type 3.1, will be supplied with each test panel.
HUATEC ISO 3452-3 PT Panel Includes:
1 ISO Panel with transparent storage box
2 Calibration Certificate with measurements and 5 single star photos
3 Foil print, glued on the storage box, with measurements and 5 single star photos

ISO 3452-3 Type 2 reference block 0
ISO 3452-3 Type 2 reference block 1






Label:

mesin uji non destruktif,

peralatan pengujian ndt,

alat inspeksi ndt
