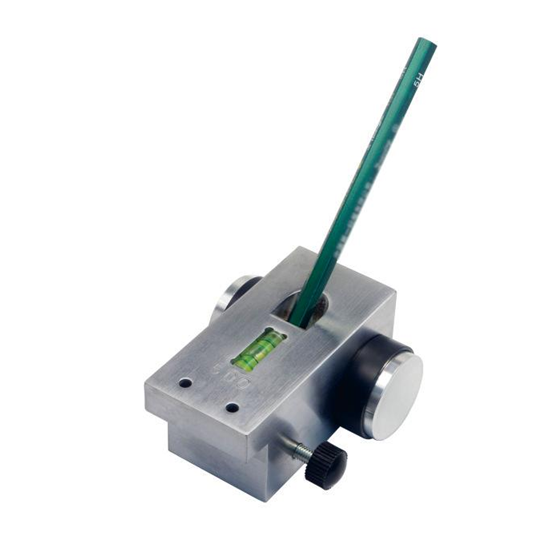

This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester

This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester
This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester

Gambar besar :  This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: HT-6510P
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1Set
Kemasan rincian: Dalam karton
Waktu pengiriman: 3 ~ 7 hari setelah pembayaran
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 500Set per bulan
Kontak

This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester

Deskripsi
Nama Produk: alat uji kekerasan pensil Beban berat: 1000g / 750g / 500g
Sudut Pengukuran: 45° Tiga Titik Sentuh: Dua Roda, Inti Pensil
Menyoroti:

pencil hardness tester machine

,

pencil scratch method tester

,

hardness testing machine with warranty

This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester



Application

Coating hardness is the neccessary measurement for the performance of coatings.This instrument applied the Pencil Scratch Method.It is a fast and economical way to determine the film hardness using th

Principle

The instrument applies mechanical measurement.Keep three point touch the coating(two wheel,a pencil core),and a 45 degree angle between pencil and test surface.Push the instrument sliding,pencil draws the corresponding track in the coating.In the change of different pencil marks,the hardness value of the film can be determined.

Standards

Coating Hardness Pencil Test Method
Standard Test Method for Determination of Coating Hardness by Pencil Test Method
General Method for Preparing Film

Structure Description

This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester 0



Specification

Load Weight 1000g / 750g / 500g
Measurement Angle 45°
Three Touch Points Two Wheels,a Pencil Core
Scratch Speed About 1 mm/s
Standard Configuration Pencil Hardness Tester
1000g Weight
750g Weight
13 Pencils(6B-6H)
Eraser
Knife
Horizontal Pad Block
Sandpaper


This Instrument Applied the Pencil Scratch Method Pencil Hardness Tester 1

Label:

alat uji kekerasan ultrasonik,

alat uji kekerasan logam,

alat uji kekerasan baja
