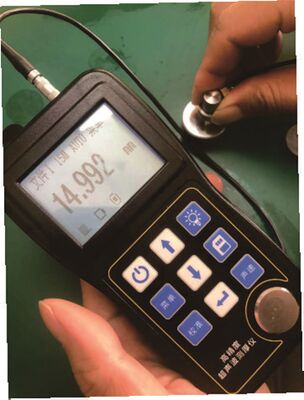

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge
TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge

Gambar besar :  TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-3219
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: USD1380/set - USD1560/set
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge

Deskripsi
Pengaturan pengujian: 0,15~20mm rentang kecepatan: 1000~9999m/dtk
Presisi: T<10mm±0,005mm T≥10mm±（0,005mm+T/100）mm Kapasitas Penyimpanan: 500 set data
Model Uji: EE/IE Bahan pengujian: Baja, besi, kaca, plastik, aluminium, dll
Tampilkan ukuran layar: FSTN 2,4", lampu latar LED
Menyoroti:

ultrasonic thickness gauge 0.001mm resolution

,

ultra thin thickness gauge non-destructive testing

,

precision ultrasonic gauge with high resolution

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge


TG-3219 ultrasonic thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for the measurement of the thickness of various materials in which the ultrasonic can propagate at a constant speed and get the reflection from the back. This instrument can accurately measure various plates and various processed parts. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.



Basic Parameters

Be able to pass through

the coatings

IE mode can pass through 1mm coating

Measuring range

0.15~20mm

Precision

H<10mm±0.005mm

H≥10mm±(0.005mm+H/100)mm

Probe size

Diameter 6mm

Measurement mode

EE/IE

Display screen size

2.4 "FSTN, LED backlight

Measurable materials

Steel, iron, glass, plastic, aluminum, etc

Sound velocity

range

1000~9999m/s

Storage capacity

500 sets of data

Units of

measurement

Metric/imperial

Language supported

English

Working

temperature

0~50℃

Environment humidity

Relative humidity less than 90%

Power supply

2*1.5V dry battery

Product size

151*76*33mm

Product weight

220g

Product Features



l  High frequency single crystal probe can be used to realize the function of measuring ultra-thin parts.

l  The "echo-echo" ultrasonic thickness measurement technology is adopted to realize the thickness measurement through the coating.

l  The display resolution is 0.001mm,and the measurement range is 0.15-20mm.

l  LCD contrast is adjustable, 128*64 dot matrix LCD display, with LED backlight,which can be used in various light environments.

l  The USB interface can be used to transfer data to the computer.



Basic Configurations



Host TG-3219

1pc

Probe

15M single crystal probe 1 pc

Coupling agent

1 pc

Manual, Warranty Card, Certificates

1 pc for each

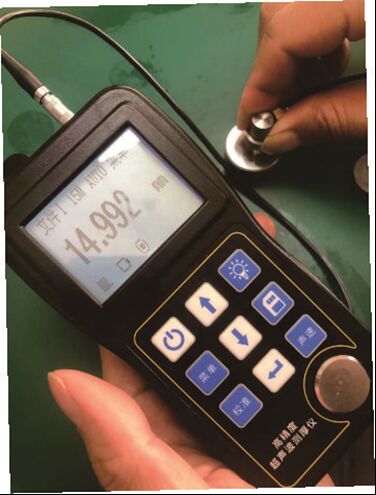

TG-3219 Ultra Thin 0.001mm Relolution Ultrasonic Thickness Gauge 0
