DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Gambar besar : DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Detail produk:

Tempat asal:	Cina
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	DG-800

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	USD2645/set - USD2990/set
Kemasan rincian:	Kotak Pengepakan Karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/T, Paypal
Menyediakan kemampuan:	10set/bulan

Kontak

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Deskripsi

Radiasi UV:	2500uW/cm2 (jarak 5cm)	Resolusi kamera:	20481536, resolusi maksimum 32642448
Kamera:	800W	Panjang kabel:	2 meter, dapat disesuaikan hingga 15 meter
Tipe tahan air:	IP65
Menyoroti:	oil drilling pipe UV endoscope , UV detection light for pipes , non-destructive testing endoscope with UV

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Application:

Used for oil drilling pipe, is by natural gas pipeline and other linear pipeline ultraviolet detection, heat exchanger tube internal inspection with recording.

Specifications:

Camera	800W
UV irradiance	2500uW/cm²(5cm distance)
Focus	automatically
White light	included

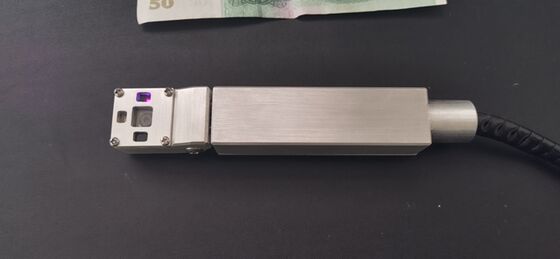

Probe size	25*21mm
Water proof type	IP65
Interface	USB2.0 Can connect with pc through software, to store data into computer
Camera resolution	20481536, maximum resolution 32642448
Working direction	The side view and front view are all possible, can move 360deg inside
UV camera type	articulated, camera is fixed in one direction and rotate it to view all four walls of tube
Cable length	2 meters, can be customized to 15meters
Weight	215g

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope 0
