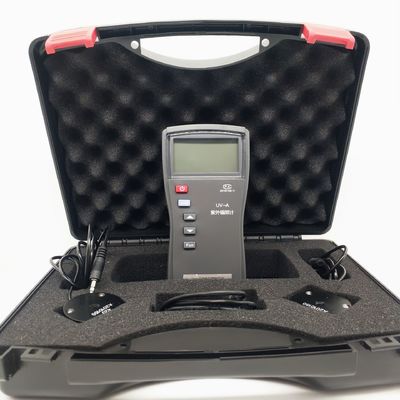

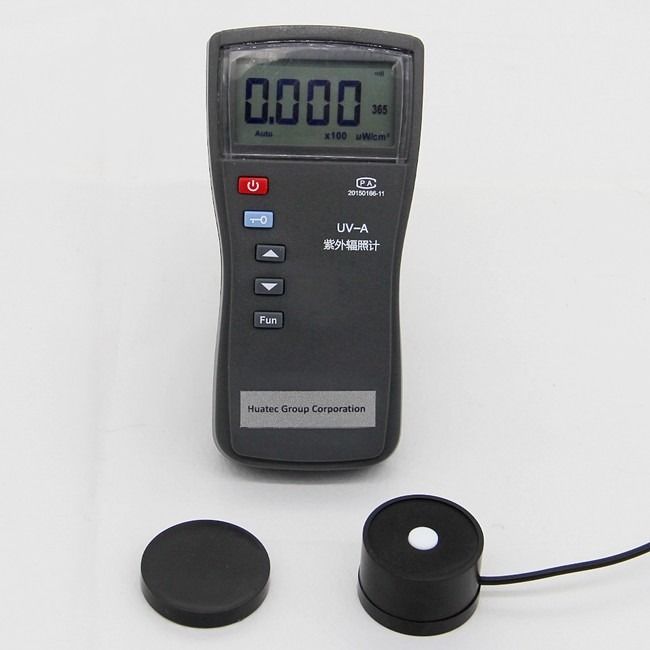

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer
HD-10 LCD display panel Ultraviolet Visible Light Illuminometer HD-10 LCD display panel Ultraviolet Visible Light Illuminometer

Gambar besar :  HD-10 LCD display panel Ultraviolet Visible Light Illuminometer

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HD-10
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 SET
Harga: USD915-USD1035/SET
Kemasan rincian: Kotak ABS biru + kemasan karton luar
Waktu pengiriman: 3-5 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, Paypal
Menyediakan kemampuan: 10 set/bulan
Kontak

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer

Deskripsi
Rentang pengukuran iluminasi: (0,1 ~ 199,9×103) piksel Kesalahan indikasi relatif: <± 4,0%
Kesalahan pencocokan V (lambda).: kurang dari 6,0% Kesalahan karakteristik kosinus: < 4,0%
Waktu respons: <1 Detik
Menyoroti:

HD-10 LCD UV light illuminometer

,

Ultraviolet visible light display panel

,

Non-destructive testing illuminometer with LCD

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer


Product overview

Ultraviolet/visible (radial) illuminance meter adopts SMT patch technology, adopts and low power consumption digital chip, the instrument shell is streamlined design, the detector after strict spectrum and Angle characteristics correction, stable performance, strong applicability. The instrument integrates two functions of ultraviolet irradiance measurement and illumination measurement, and is widely used in various fields such as photochemistry, polymer material aging, flaw detection, ultraviolet light source, plant cultivation, large-scale integrated circuit industry, agriculture, architecture, environment and scientific research.


Specifications

Illumination measurement range (0.1 ~ 199.9×103) lx
Relative indication error <± 4.0%
V (lambda) matching error less than 6.0%
Cosine characteristic error < 4.0%
Response time

<1 second
Ultraviolet wavelength range and peak wavelength

lambda P (315 ~ 400) nm, lambda P = 365nm
The irradiance measurement range muw /cm2 (0.1 ~ 199.9×103)
Long wave response error <15%
Relative indication error

<± 8% (relative to NIM standard)
Nonlinear error <± 1.5%
Response time <1 second
Zero value error

(full range FS) < ±1.0% of full range
Shift error

<±1.0%
Fatigue error <3.0%
Ambient temperature

(0~40)℃; Humidity < 85% RH
Size and weight 160mm×78mm×43mm; 0.2 kg
Power supply 6F22 9V laminated battery (non-rechargeable battery)
Overall power consumption < 0.1va


Product features

Spectral and angular characteristics are strictly corrected

Digital liquid crystal display with backlight

Manual/automatic range switching

Digital output interface (USB, redundant power supply)

Low battery alert

Automatic delay shutdown

Number holding

Tap the button to operate, beeping prompt

HD-10 LCD display panel Ultraviolet Visible Light Illuminometer 0
