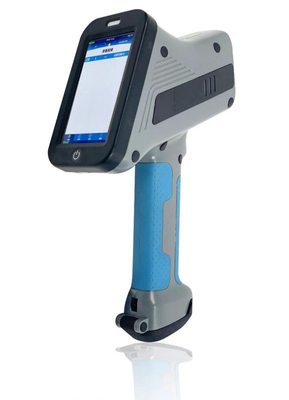

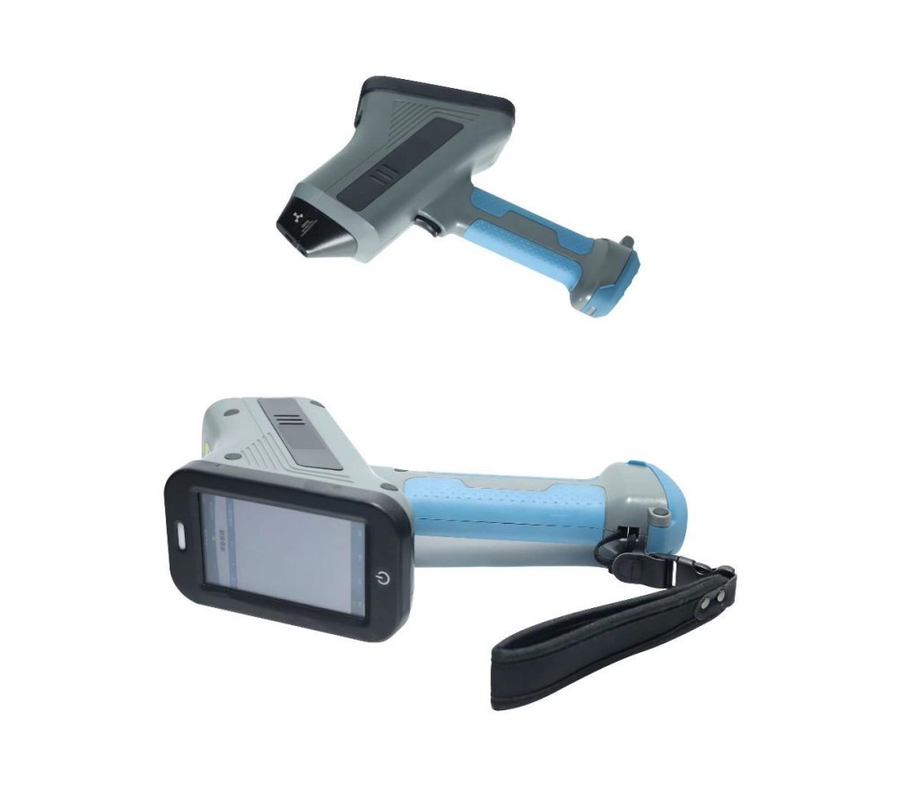

HXRF-150S Soil Heavy Metal Analyzer
Product description
*Excellent performance (for on-site use, non-destructive, fast, and accurate)
High precision, fast speed, close to laboratory level analysis level, can visually display the percentage content and ppm content of heavy metal elements. The entire analysis process can be completed in just a few seconds, and soil identification only takes 1-2 seconds. It is a one click operation that even non technical personnel can easily master.
*Non destructive testing (NDT)
Without damaging or affecting the performance of the tested object, without damaging the internal organization of the tested object, the entire testing process is without any damage.
*Analysis software
Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email; Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email;
*Application field
1. Determine the composition of contaminated metals in the pollution site, track pollutants, establish pollution models, and quickly investigate and measure pollution boundaries.
2. Minimize the disposal of harmful substances in pollution sites.
3. Pollution on-site control, providing data evidence for in-depth analysis of pollution control methods.
4. Monitor the impact of pollution sources such as mining areas, factory environments, tailings, dust, and soil more quickly and economically to achieve sustainable development.
5. Dynamic control of the workplace, detection of harmful elements, and screening of hazardous waste.
6. Rapid detection and control of waste liquid, waste, and leakage generated by industrial production.
7. Polluting elements in air filters, dust wipes, dust, paint chips, and thin films.
8. Detection of harmful heavy metals in surface spraying, plating, and coating layers such as coatings and paints.
9. Rapid investigation and measurement of metal components, pollution patterns, and pollution boundaries in polluted water and wastewater.
10. On site monitoring of metals involved in RCRA and priority control of contaminated metals.
11. Minimize on-site disposal of harmful substances such as original land, polluted water, wastewater, etc., and provide theoretical basis for in-depth analysis of pollution control and remediation methods.
12. Diseases caused by environmental pollution are related to many heavy metal elements, such as cancer (Ni, Cr), kidney disease (As, Pb), liver disease (As, Cu) Pulmonary dust syndrome (Fe), asthma (Ni), Parkinson's syndrome (Mn).
*Data processing
Multiple methods such as WIFI and wireless Bluetooth are used for data transmission, and files can be sent via email, synchronously transmitted via Bluetooth, or synchronously transmitted through software.
Technical parameters
|
HXRF-150S Handheld X-ray fluorescence soil composition analyzer
|
|
Detector
|
SI-PIN
|
|
Excitation source
|
50KV/200uA- Integrated Micro X-ray Tube and High Voltage Source with Silver Target End Window
|
|
Element detection range
|
1,Elements with atomic number of 14-92 between sulfur (S) and uranium (U)
2,Analyze major metal pollution elements:Si,S,K,Ca,Sc,Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Ga,Ge,As,Se,Rb,Sr,Y,Zr,Nb,Mo,Ag,Cd,Sn,Sb,I,Ba,Eu,Yb,Lu,Hf,Hg,Pb,Bi A total of 37 (can be customized and added according to needs)
|
|
Detection object
|
Solid, liquid, powder
|
|
Analytical methods
|
Intelligent direct reading optimization analysis method+basic parameter method (FP)
|
|
Software
|
Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email;
|
|
Weight
|
≤1.75KG(including battery)
|
|
Microcomputer display system
|
1. Semi transparent and semi anti industrial customized touch screen ≥ 5 inches. Standard configuration: 4G, with built-in extended storage supporting 32G, capable of storing massive amounts of data.
2. Resolution: 1080 * 720
|
|
Power supply
|
1. Rechargeable lithium battery, standard configuration 6800mAh, voltage: 7.2V; Sustainable work for up to 12 hours;
2. The instrument has a hot swappable function, which delays power outage. Replacing the battery does not require shutting down, and the battery comes with a battery level display
|
|
Charge mode
|
1. There is a charging interface on the side of the body;
2. Battery charging can be done in the vehicle; (Non standard configuration)
3. Universal adapter charging power supply;
|
|
Collimator,Filter
|
*1. Special radiation resistant material collimator, inner diameter 2MM/3MM
2. No filter, saves switching time, and software deducts background interference
|
|
Front end testing window
|
*≤9mm*5mm “Waist shaped” window
|
|
Camera
|
Equipped with a built-in 5 megapixel high-definition camera function, it can take photos of the tested object for easy management
|
|
Test report sending method
|
E-mail,Bluetooth synchronous transmission,software synchronous transmission
|
|
Data transmission method
|
Wifi,Bluetooth
|
|
Maintenance method
|
Remote software upgrade and diagnosis, on-site maintenance, diagnosis
|
|
User Management
|
Multi level user management function (can create multiple accounts, achieve corresponding person numbers, facilitate management and data traceability)
|
|
Protective cover
|
The instrument is equipped with a protective cover, which has functions such as instrument calibration, radiation protection, and damage prevention (not standard)
|
|
Material sensing and instrument status prompt
|
1. The body has a material sensing function, which can intelligently identify whether there is a test object in front of it.
2. Intelligent status display light, which displays three working states through the intelligent status display light (red flashing indicates being detected, green flashing indicates there is no object to be tested in front, and green long light indicates that there is an object to be tested in front)
|
|
Operating environment temperature
Humidity
|
-20℃ - +60℃
humidity≤90%
|
|
Safety
|
1. Multiple safety protection, no radiation testing;
2. The radiation level during work is much lower than international safety standards, and it has the function of sample free aerial testing and automatic shutdown of X-ray tubes
|
|
Accessories
|
Standard configuration:

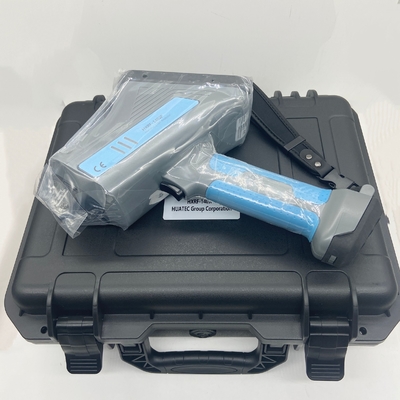

1. The three defense military protective box has waterproof, dustproof, and shock-absorbing functions.

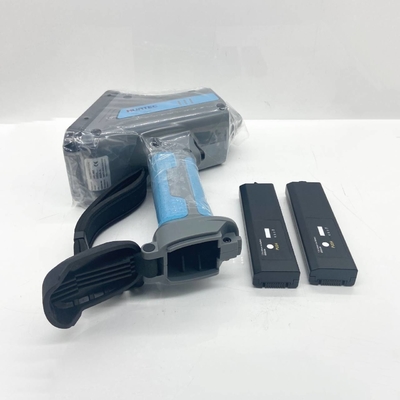

2. Rechargeable lithium battery * 2
3. Universal battery charging adapter * 1
Optional accessories: base mounted test stand, car battery charger, protective cover, Bluetooth printer
|
