Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge

Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge

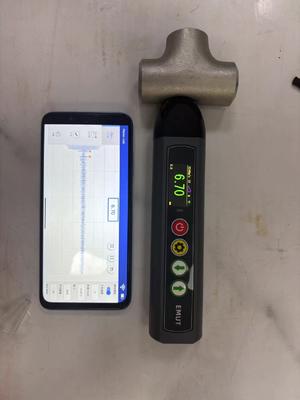

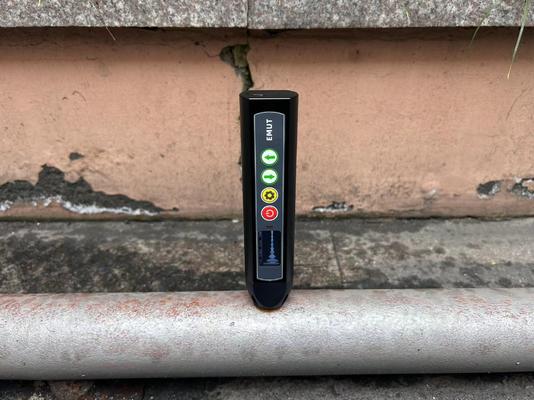

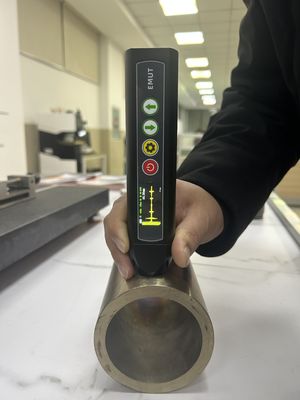

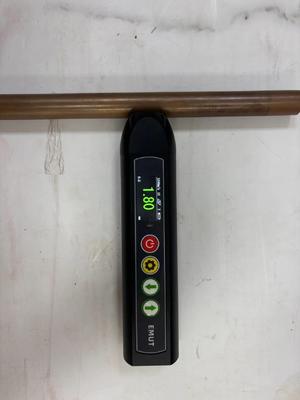

Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge

Gambar besar :  Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: TG-14
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: Dalam karton
Waktu pengiriman: 5 ~ 8 hari kerja setelah pembayaran
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 100set per bulan

Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge

Deskripsi
Nama Produk: Pengukur ketebalan ultrasonik elektromagnetik Rentang pengukuran: 1,5 ~ 240mm
Izin mengangkat: 0~3mm Jenis probe: Probe suhu kamar standar, suhu tinggi opsional, probe frekuensi tinggi, probe frekuensi rendah suhu
Menyoroti:

pocket pen ultrasonic thickness gauge

,

non-contact electromagnetic thickness tester

,

no coupling agent thickness measurement

Pocket Pen Type No Coupling Agent and Non-Contact Electromagnetic Ultrasonic Thickness Gauge


General introduction

The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required



The probe and the host are integrated, and the probe can be replaced



Configurable probe types: normal temperature probe: ≤ 120 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc., with a maximum liftable distance of 4mm, high temperature probe: ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel, with a maximum liftable distance of 2mm



Lift-off effect: (actual lift-off distance is related to material properties and degrees), anti-rust film, salt deposits or any other insulating coating (oil, varnish, porcelain, plastic, etc.) can be used as operating clearance


# Corrosion layers are allowed and the measurement can be improved with a maximum increase distance of 3mm

# The minimum diameter (curvature) of the workpiece that can be detected is 8mm

# The maximum tilt angle of the probe: 25°

# Probe excitation method: water magnet

# Type of sound wave: shear wave



Features

# Pocket pen type, no coupling agent, and non-contact thickness gauge

# Human body engineering design, compact structure, super small volume, easy to carry, hand-held operation, strong magnetic absorption, improve fatigue conditions

# Accurate thickness measurement, can pass through the coating, professional algorithm program support, do not need to coupling agent, do not need to grind the workpiece surface, allow the detected surface paint and wrapping layer, allow the workpiece surface uneven

# Multi-material sound velocity can be pre-stored in the instrument, and the material sound velocity can be dynamically added and deleted at the same time. The sound velocity calibration increases the temperature compensation function, and effectively improves the measurement accuracy


Technical parameter

Measuring range 1.5~240mm
Lifting clearance 0~3mm
Receiving gain 100dB
Operating frequency 4MHz
Ambient temperature -20°C to +50°C
High temperature sound speed compensation automatic compensation
Temperature range -150~800(higher temperature can be customized)
Resolution 0.01mm
Adjustable range of sound speed 1000~9999m/s
Continuous working time 3h
Size 151*76*35mm
Weight 220g
Excitation mode permanent magnet
Error range  10mm, error ±0.05mm (> 10 mm + / - 0.01 + H / 200) mm (H is the thickness of the workpiece)
Power supply lithium rechargeable battery

Probe type: standard room temperature probe, optional high temperature, high frequency probe, high temperature low frequency probe, B scanning probe


Standard delivery

TG-14 electromagnetic ultrasonic thickness gauge

Normal temperature probe

Instruction manual

Calibration certificate

Carrying case



Optional accessories

High temperature

High frequency probe

High temperature low frequency probe

B scanning probe
