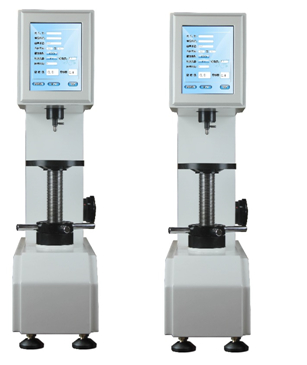

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution
HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Gambar besar :  HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: HR-150DT-P
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Dalam kotak kayu
Waktu pengiriman: 5 ~ 8 hari kerja setelah pembayaran
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50 set per bulan
Kontak

HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution

Deskripsi
Nama Produk: alat uji kekerasan rockwell Nomor Model: HR-150DT-P
Tenaga Uji Awal: 10 kgf (98,07 N) Angkatan Uji Total: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Resolusi nilai kekerasan: 0,1 jam Output data: Tampilan LCD
Menyoroti:

Rockwell hardness tester 150kgf

,

HR-150DT-P hardness testing machine

,

Rockwell tester 0.1 HR resolution

HR HB HV Other Hardness System Conversion Touch Screen Plastic Rockwell Hardness Tester
Product Description
  • Electric loading system with weights and high-precision sensor
  • User-friendly touch screen interface for easy operation
  • Automatic correction with standard hardness block divided into high, medium, and low sections
  • Built-in convex cylinder hardness correction
  • Advanced data processing including HR, HB, HV hardness system conversion
  • Customizable qualified range settings with automatic alarm for out-of-spec results
  • Test data storage with tester and sample name input capability
  • Automatic storage, processing, and printing of test results
Technical Parameters
Model number HR-150DT-P
Initial test force 10 KGF (98.07 N)
Total test force 60kgf(588N), 100kgf(980N), 150kgf(1471N)
Rockwell hardness scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Scope of testing HRE:70-100, HRL:100-120, HRM:85-110, HRR:114-125
Load retention time 0-99s
Hardness value resolution 0.1 HR
Test force error <1.0%
Data output LCD display
Touch screen size 8 inches
Data storage 20 test results capacity, built-in printer RS-232 interface
Compliant with standards GB/T230.2, GB/T3398.2, JB/T7409
Maximum specimen height 200mm
Indenter to machine wall distance 200mm
Dimensions 560×200×800mm
Weight 70kg
Power supply AC220 ±5%, 50-60Hz
Operating Interface
HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution 0 HR-150DT-P Rockwell Hardness Tester with 150kgf Test Force and 0.1 HR Resolution 1
Data storage interface with high, medium, and low hardness value automatic correction
Standard Accessories
Name Quantity Name Quantity
Touchscreen pen, printer paper 1 each Large, medium, and V-shaped test stands 1 each
Ball indenter (diameter 3.175, 6.35, 12.7mm) 3 pieces Hardness blocks (HRE,HRL,HRM,HRR) 4 blocks
Spirit level 1 Horizontal adjustment foot 4
Power cord 1 Dust bag 1
Product certificate, warranty card 1 copy Instructions 1 copy
