Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector
Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Gambar besar :  Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: HG-6390
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Dalam Kotak Karton
Waktu pengiriman: 3 ~ 7 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50 set Per Bulan
Kontak

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

Deskripsi
Nama produk: Pengumpul data getaran portabel Rentang pengujian: ACCE: 0,1 ~ 400,0m/s2 (puncak)
Menampilkan: TFT: 2.8 ”, 320 × 240 piksel dengan RGB Antarmuka data: USB (RS232/RS485), Bluetooth
Menyoroti:

Portable vibration data collector with 400m/s2 range

,

Vibration data collector with 2.8 inch display

,

Non destructive testing equipment with warranty

Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector

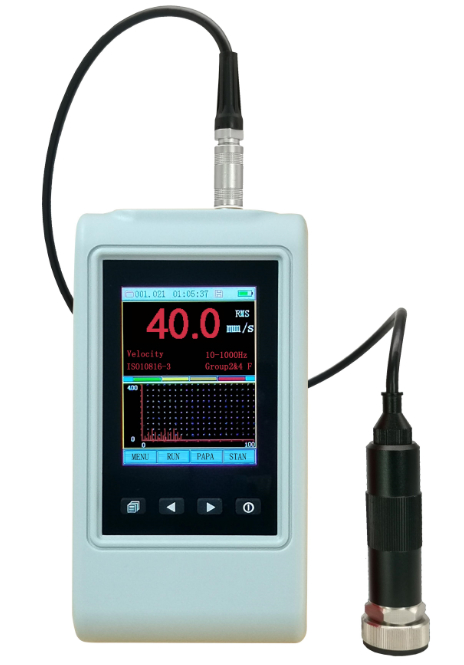

The HG-6390 vibration data collector uses a piezoelectric acceleration transducer to convert vibration signals into electrical signals. Through signal analysis, it displays or prints results including RMS velocity values, peak-to-peak displacement, acceleration peaks, and real-time spectral charts. This instrument captures vibration parameters while recording real-time vibration curves.
Designed for conventional vibration testing in rotating and reciprocating machinery, this device measures acceleration, velocity, displacement, and rotational speed (or inherent frequency), while providing basic fault diagnosis capabilities.
Key Features
  • Built-in ISO10816 fault diagnosis standard for automatic equipment fault detection
  • Complies with GB 13823.3 technical specifications
  • Widely used in machinery, power, metallurgy, automotive, and industrial applications
  • Comprehensive vibration analysis with multiple parameter measurements
  • Extended battery life with 20 hours continuous operation
Standard Configuration
NO. Item Quantity
1 Main unit 1
2 Power Adapter (5V/1000mA) 1
3 Piezoelectric sensors 1
4 Magnetic seat 1
5 Manual 1
6 Package case 1
Optional Configuration
NO. Item Quantity
3 Probe 1
4 Communication cable 1
Technical Specifications
Testing Range (Metric): Acceleration: 0.1 ~ 400.0m/s² (peak) | Velocity: 0.1 ~ 400.0mm/s (RMS) | Displacement: 0.001 ~ 4.000mm (peak-peak)
Frequency Range: Acceleration: 10Hz ~ 1KHz, 1KHz ~ 10KHz | Velocity: 10Hz ~ 1KHz | Displacement: 10Hz ~ 500Hz
Data Memory: 150×100 pieces of patrol data | 30~480 pieces of record data
Operating Temperature: 0℃ ~ 40℃
Tolerance: ±5%
Humidity: ≤80% RH
Display: 2.8" TFT (320×240 pixels with RGB)
Data Interface: USB (RS232/RS485), Bluetooth
Dimensions: 140×76×28 mm
Printer: Wireless Bluetooth printer (optional)
Weight: 180g
Battery: Rechargeable Li battery, 2000mAh
Battery Life: Continuous operation: ~20 hours | Standby: ~80 hours
Conventional Vibration Rotating and Reciprocating Portable Vibration Data Collector 0
