HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope
HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope
HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Gambar besar :  HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: ISO,CE
Nomor model: Htd-d8
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Kemasan Karton
Waktu pengiriman: 7-10 hari kerja setelah pembayaran
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 50 set per bulan
Kontak

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Deskripsi
Nama Produk: Endoskopi Elektronik Industri Arah pengamatan: Visi langsung
Panjang fokus: Tetap Diameter probe: Φ6mm/Φ8mm/Φ10mm/Φ12mm
Kedalaman bidang: 10mm-∞/20-150 Probe arah pembengkokan: 4 jalan
Menyoroti:

4-way industrial endoscope with HD display

,

industrial endoscope with 5-inch screen

,

non-destructive testing endoscope with warranty

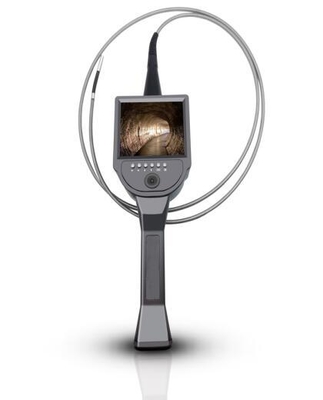

HTD-D Series 4 Directions Industrial Electronic Endoscope
The HTD-D series industrial endoscope features electric control for precise 4-direction rotation of the speculum head, enabling flexible positioning and effortless operation. With its integrated handheld design, high-definition imaging, and versatile functionality, this endoscope provides reliable inspection capabilities across various industrial applications.
Key Features
  • Integrated design: Lightweight (0.88kg) for easy portability and one-handed operation
  • Precision control: Electric 4-way directional control with micro-movement adjustment
  • Durable construction: Multi-layer stainless steel/tungsten wire mesh for corrosion and wear resistance
  • High-definition display: 5-inch TFT true color screen with 450,000 pixel resolution
  • Adjustable lighting: High-brightness LED with multiple brightness levels
  • Advanced imaging: Photo capture, video recording, and USB connectivity for data transfer
  • Extended operation: 8GB memory with 3-4 hours battery life from ultra-low power consumption
  • Customizable options: Available with infrared or wireless control upgrades
Technical Specifications
Parameter Specification
Product Name HTD-D Series Industrial Electronic Endoscope
Optical System Direct vision observation
Field Angle ≥70°
Probe Diameter Φ6mm/Φ8mm/Φ10mm/Φ12mm
Probe Bending Angle ≥120° (4-way control)
Working Length 1.5m (customizable)
Display 5" TFT true color (250cd/㎡ brightness)
Image Resolution >720×625 (450,000 pixels)
Light Source High brightness LED
Storage 8GB SD card (JEPG, MPEG4 formats)
Power Built-in rechargeable battery
Interfaces USB 2.0, AV OUT
Operating Mode Handheld portable control
Applications
This industrial endoscope is widely used in automotive engine inspection, steel pipe and casting evaluation, container defect detection, aerospace maintenance, power industry applications, and various civil and law enforcement inspection scenarios.

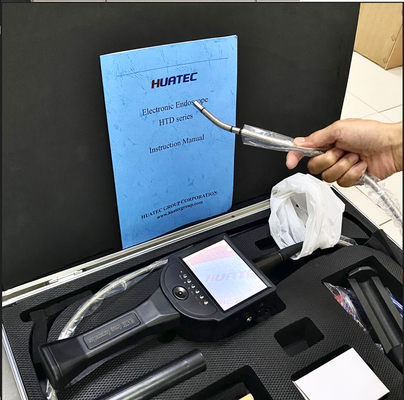

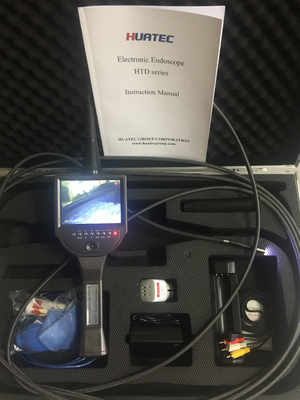

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope 0 HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope 1 HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope 2
