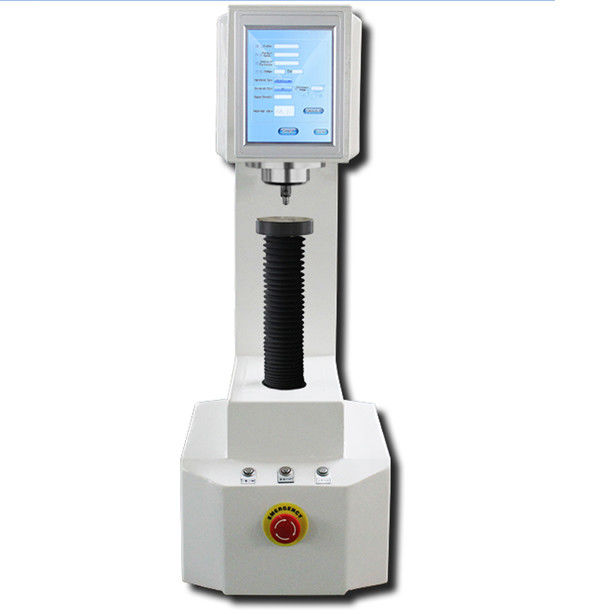

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

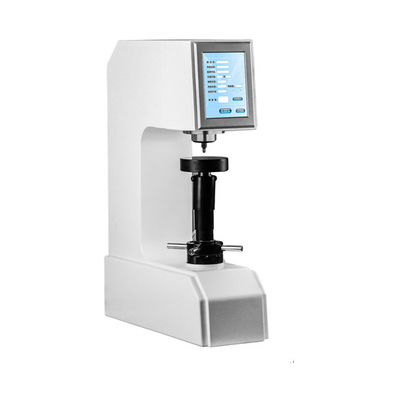

Gambar besar :  HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HR-150DT-P
Dokumen: HR-150DT-P Touch screen dig...er.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD2530/set - USD2860/set
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

Deskripsi
Tenaga Uji Awal: 10 kgf (98,07 N) Total beban Rockwell: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Kesalahan nilai beban: Kurang dari 0,5% Keakuratan pengukuran kekerasan: 0,1 jam
Tinggi Sampel Maksimal: 200mm Jarak Indenter ke dinding luar: 200mm
Waktu retensi muat: 0-99 detik Penyimpanan data: Dapat menyimpan 20 hasil tes, antarmuka printer rs-232 bawaan
Menyoroti:

touch screen Rockwell hardness tester

,

digital plastic hardness tester

,

Rockwell hardness tester with warranty

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

I,   Product Description:

  1. Using weights electric loading, high-precision sensor.
  2. Touch screen interface, easy to operate.
  3. According to the standard hardness block, each hardness scale is divided into high, medium and low three sections for automatic correction.
  4. Built-in convex cylinder hardness correction.
  5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, over limit automatic alarm, can input tester, sample name and other information.
  6. The test results can be automatically stored, processed and printed.

II,  Technical parameters:

Model number

HR-150DT-P

Initial test force

10 KGF (98.07 N)

Total test force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell hardness scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Scope of testing

HRE:70-100   HRL:100-120  HRM:85-110  HRR:114-125

Load retention time

0-99s

Hardness value resolution

0.1 HR

Test force error

< 1.0%

Data output

LCD display

Touch screen size

8 inches

Data storage

Can store 20 test results, built-in printer RS-232 interface

Compliant with standards

GB/T230.2, GB/T3398.2, JB/T7409

Maximum allowable specimen height

200mm

Distance from indenter to machine wall

200mm

Size

560×200×800mm

Weight

70kg

Power supply

AC220+5%,50 to 60Hz

 III,Standard accessories:

Name

quantity

Name

Quantity

Touchscreen pen, printer paper

1 each

Large, medium, and V-shaped test stands

1 each

Ball indenter (diameter 3.175, 6.35, 12.7mm)

3 pieces

Hardness blocks (HRE,HRL,HRM,HRR)

4 blocks

Spirit level

1

Horizontal adjustment foot

4

Power cord

A root

Dust bag

1

Product certificate, warranty card

1 copy

Instructions

1 copy
