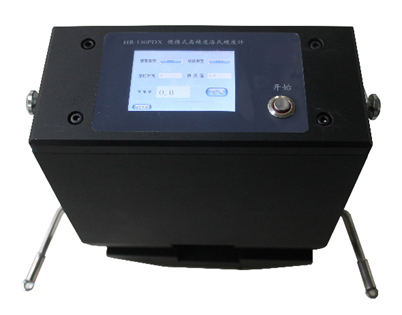

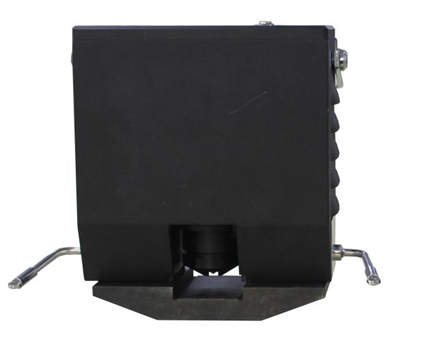

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester
HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Gambar besar :  HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HB-187.5PDX
Dokumen: HB-187.5PDX Portable high-...er.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD7360/set - USD8320/set
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 10-15 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Deskripsi
Rentang Pengujian Brinell: 15.9-650HBW (ASTM E10) Waktu durasi: 0-99 detik
Rasio resolusi kekerasan: 0,1HBW Skala Konversi: Brinell, (Rockwell dan Vickers adalah opsional)
Deviasi gaya uji: ＜1% Voltase: AC220+5%,50～60Hz
Menyoroti:

portable Brinell hardness tester

,

closed loop hardness tester

,

touch screen Brinell tester

HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester

Main Features:

1.       The tester can automatically test Brinell (depth measurement method) (HBT) scale.

2.       Applies electric loading, high-precision sensor and possesses unique close-circuit control system;

3.       Touch-screen interface; convenient operation; choose hardness scale directly; force value changes automatically in test parameter;

4.       Auto-correction of high, medium and low scales of brinell hardness blocks according to standard blocks;

5.       Auto-correction of test force through standard dynamo-meter;

6.       Automatically exertion of initial and main test force;

7.       Strong data processing function including: HB and multiple hardness scale conversion; setting of valid range; auto alarm when limit is exceeded; input name of tester, name of sample and other information;

8.       More sample and testing information; testing data can be saved automatically to excel format and saved on u-disk for convenience of editing and processing.


Technical Specifications:

Model

HB-187.5PDX

Brinell total test force

5 Kgf ,6.25 Kgf ,10 Kgf ,15.625 Kgf ,25 Kgf ,30 Kgf ,31.25Kgf  62.5Kgf,187.5Kgf

Brinell hardness scale

HBW2.5/6.25,HBW2.5/15.625,HBW2.5/31.25, HBW2.5/62.5,HBW2.5/187.5,HBW1/5,HBW1/10,HBW1/30

Brinell testing range

15.9-650HBW(ASTM E10)

Duration time

0-99s

Hardness resolution ratio

0.1HBW

Test force deviation

＜1%

Data output

LCD display

Data saving

Measurement data saved in u-disk in excel format

Conversion scale

Brinell,(Rockwell and Vickers are optional)

Criteria met

BSEN 6506, ISO 6506, ASTM E10, GB/T231

Specimen dimension

Plane surface: area≥160X100,thickness≥5mm;

Round stick(pipe): diameter over 250mm;

When between 60 to 250mm, fix v-shaped block and chain to the magnet to fasten sample.

Size

320×170×230mm

Weight

10.5kg

Voltage

AC220+5%,50～60Hz

Standard Accessories

Item

Quantity

Item

Quantity

Main unit HB-187.5PDX

1

1mm,2.5mm carbide indenter

1 each

Hardness block (HRB)

2

 power source

1

Iron base

1

U disk, touch pen

Each 1

Power cord

1

Manual

1

Product certificate, warranty card

1

Product certificate, warranty card

1


HB-187.5PDX Portable High-precision Closed Loop Touch Screen Brinell Hardness Tester 0
