HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Gambar besar : HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Detail produk:

Tempat asal:	CINA
Nama merek:	HUATEC
Sertifikasi:	CE
Nomor model:	HR-150DX (H)
Dokumen:	HR-150DX (H) advanced digit...er.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	USD3542/set - USD4004/set
Kemasan rincian:	Kotak Pengepakan Karton
Waktu pengiriman:	7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	T/t, paypal
Menyediakan kemampuan:	10set/bulan

Kontak

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Deskripsi

Pertukaran skala:	Surface Rockwell, Brinell dan Vickers	Waktu tinggal:	0-99 detik
Total beban Rockwell:	60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)	Beban total Rockwell Superfisial:	15 kgf (147,1 N) 30 kgf (294,2 N) 45 kgf (441,3 N)
Kesalahan nilai beban:	Kurang dari 0,5%	Keakuratan pengukuran kekerasan:	0,1 jam
Tinggi Sampel Maksimal:	400mm	Jarak Indenter ke dinding luar:	200mm
Kesalahan kekuatan tes:	＜ 1,0%
Menyoroti:	Touch Screen Rockwell Hardness Tester , Customized height Hardness Tester , Non Destructive Testing Equipment with warranty

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Product description:

1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.

2. Touch screen interface, easy to operate, directly select the hardness scale, force value automatically changes in the test parameters.

3. According to the standard hardness block, the high, middle and low sections of each hardness scale shall be automatically corrected.

4. Test force can be automatically corrected by standard dynamometer.

5. Automatically apply the initial test force and the main test force.

6. Powerful data processing function, including: HR, HB, HV and other hardness standard conversion, set the qualified range, automatic alarm over the limit, can input tester, sample name and other information.

7. More samples and test information, and the measurement data are saved in EXCEL format for easy editing and processing.

Technical parameters:

Model	HR-150DX(H)
Beginning test force	10kgf(98.07N)
Total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale	HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Test range	HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125
Duration time	0-99s
Hardness resolution	0.1HR
Error of test force	＜1.0%
Data output	LCD display
data storage	Measurements are stored on a usb drive in EXCEL format
Conversion scale	Surface Rockwell, Brinell and vickers
standard	BSEN 6508, ISO 6508, ASTM E18, GB/T230
Maximum allowable height of specimen	400mm
Distance from head to wall	200mm
Size	560×220×980mm
Weight	90kg
Power	AC220+5%,50～60Hz

Standard accessories:

Name	Quantity	Name	Quantity
Diamond head	1PC	Diameter 1.5875mm ball indenter	1PC
Hardness block (2PCS HRC and 1PC HRB)	total 3 pieces	Large, medium and V type test stand	Each one
Fuse 2A	2pcs	Adjust the foot horizontally	4pcs
Usb flash drive, touch pen	Each one	Dust bag	1pc
Power	1pc	instructions	1pc
Product certificate and warranty card	1pc

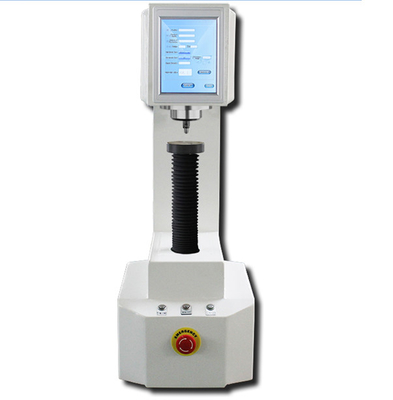

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester 0

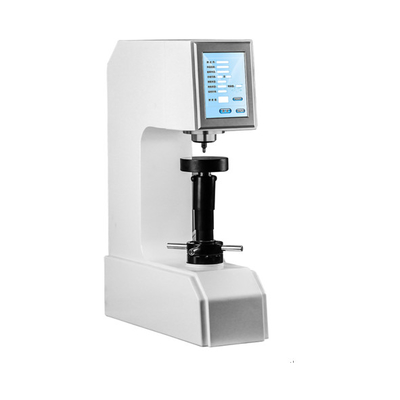

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester 1
