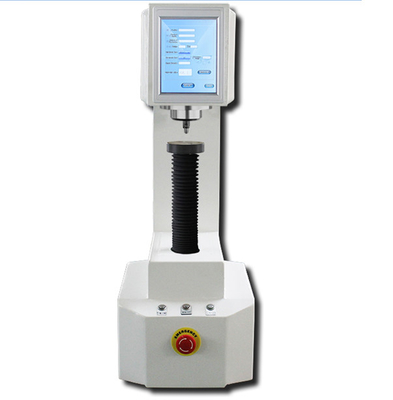

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen
HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Gambar besar :  HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HR-150DT
Dokumen: HR-150DT Digital Touch Scre...er.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD2309/set - USD2610/set
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Deskripsi
Skala Konversi: Superficial Rockwell, Brinell, Vickers Waktu tinggal: 0-99 detik
Total beban Rockwell: 60kgf(588N) 100kgf(980N) 150kgf(1471N) Kesalahan nilai beban: Kurang dari 0,5%
Keakuratan pengukuran kekerasan: 0,1 jam Tinggi Sampel Maksimal: 200mm
Jarak Indenter ke dinding luar: 160mm
Menyoroti:

Rockwell hardness tester with touch screen

,

high precision hardness tester sensor

,

non destructive testing equipment HR-150DT

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen

Product Features:

  1. Electric loading with weight, high precision sensor.
  2. Touch screen interface, easy operation.
  3. Automatic correction of high, medium and low hardness values.
  4. Built-in hardness value correction of convex cylindrical surface.
  5. Strong data processing function, conversion of hardness value HR, HB, HV and so on, set the qualified range, overrun alarm, you can enter the tester, the sample names and other information.
  6. Test results can be stored, processed and printed automatically.

Application Fields:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Technical Specifications:

Model

HR-150DT

Initial load of Rockwell

10kgf(98.07N)

Total load of Rockwell

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell Scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Hardness testing range

HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120  HRM:85-115, HRR:114-125

Dwell time

0-99s

Resolution of hardness value

0.1HR

Load value error

＜0.5%

Hardness reading

LCD display

Screen size

8 inch

Data Storage

Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored

Conversion Scale

Superficial Rockwell, Brinell, Vickers

Carried Standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Max Height of Specimen

200mm

Distance of Indenter to outer wall

160mm

Overall Dimension (mm)

560×200×800mm

Net weight

70kg

Power supply

AC220+5%,50～60Hz



Standard Accessories:

Name

Quantity

Name

Quantity

Diamond Rockwell Indenter

1

1.5875mm Ball Indenter

1

Hardness block

(HRC High Low 2, HRB 1)

3

Large, Medium, “V” shaped Testing Table

1 each

Weights(A,B,C)

   1 each

Plastic Dustproof cover

1

Power line

1

2A fuse

1

Operation Manual

1

Product certificate

1

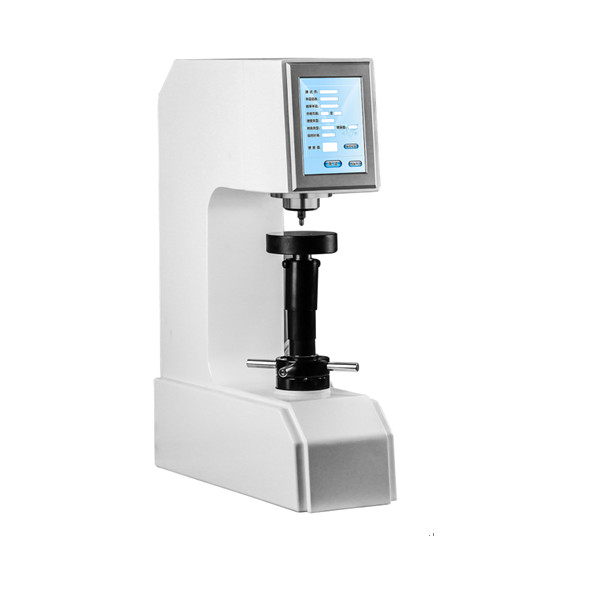

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen 0

HR-150DT High precision sensor Rockwell Hardness Tester with Touch screen 1
