AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz

AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz
AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz

Gambar besar :  AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: AWS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan

AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz

Deskripsi
Sudut baji: 45 ° 、 60 ° dan 70 ° Rentang frekuensi: 2 - 2.5MHz
Menyoroti:

AWS ultrasonic weld inspection probe

,

weld seam testing ultrasonic block

,

NDT ultrasonic probe with block

Weld Seam Inspection Ultrasonic AWS Probe & Block
Product Specifications
Attribute Value
Wedge Angle 45°, 60° and 70°
Frequency range 2 - 2.5MHz
Product Description

The Weld Seam Inspection Ultrasonic AWS Probe & Block is designed for precision inspection of weld integrity in industrial applications.

Key Features
  • Compliance with specifications: Meets or exceeds all requirements in AWS Structural Weld Standard D1.1
  • Multiple angles: Standard refraction angles of 45°, 60° and 70° for versatile inspection capabilities
  • Excellent performance: High sensitivity for clear defect detection with long service life
  • Convenient connection: BNC connectors for stable, reliable connections and easy installation
Performance Parameters
Frequency: 2-2.5MHz range ensures detection sensitivity while effectively penetrating weld material
Wafer size: Square/rectangular transducer (15-25mm width, 15-20mm height) with 1.2:1.0 maximum aspect ratio
Applications

Primarily used for ultrasonic testing of bevel welds and heat-affected zones in plate thicknesses of 8-200mm (5/16in. - 8in.). Widely applied in non-destructive testing for steel structures, bridges, and shipbuilding to detect cracks, pores, and slag inclusions.

Related Accessories

Includes wedges for generating 30° transverse waves and 70° longitudinal waves in steel materials. Features 30-70-70 technology for quantitative crack measurement. Also available with Snail wedges and Serrated wedges for different inspection requirements.

Product Images

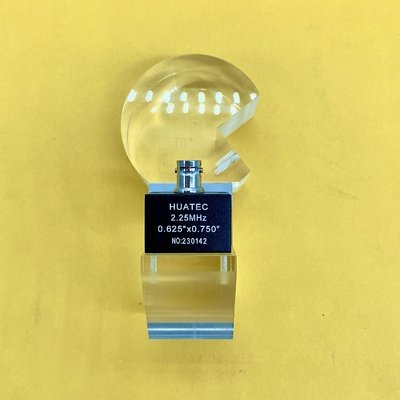

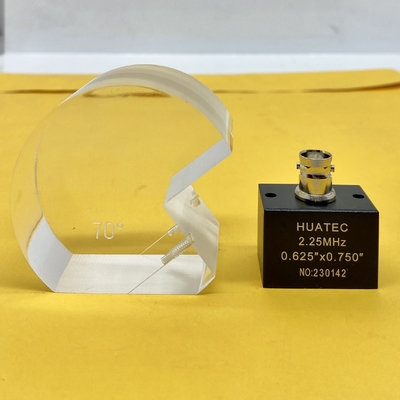

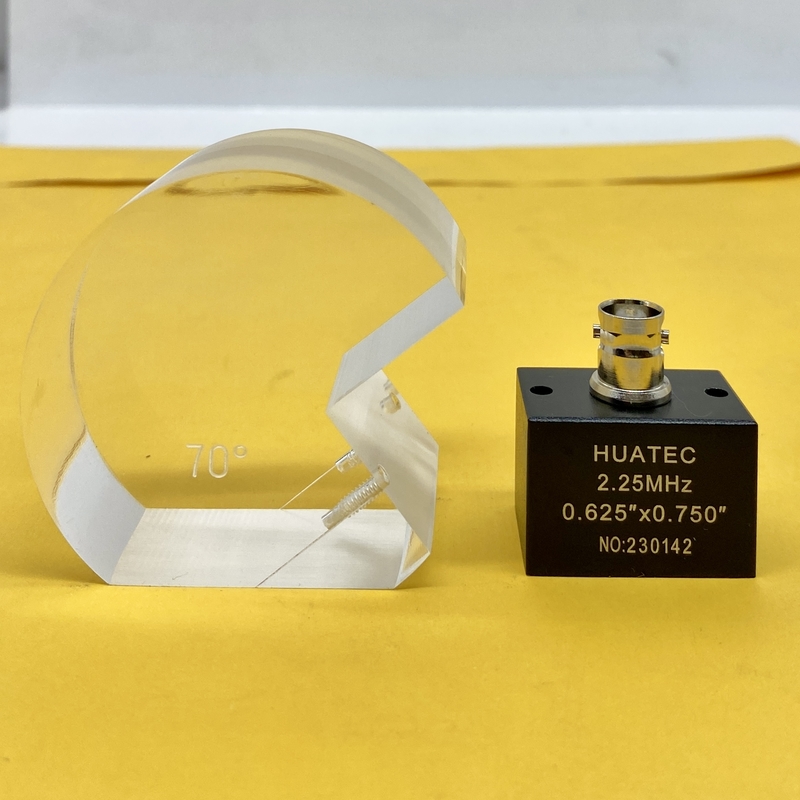

AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz 0
AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz 1
AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz 2
AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz 3
